HIMA F6705 Analog Output Module
دليل المنتج：
HIMA F6705 is an analog output module in the HIMA safety control system, used to convert the digital control signal of the controller into a continuous analog signal, driving the execution equipment or on-site control components. This module is typically used in conjunction with HIMA F6 series controllers to achieve high-precision process control and regulation.
Application field
Petroleum, natural gas and chemical safety control system
Power and power plant automation control system
Industrial process automation and continuous variable control
Control valves, frequency converters, pumps, and other executing equipment
Application of Analog Output in High Reliability DCS/SIS Systems
الوظائف والميزات الرئيسية
Multi channel analog output
It can simultaneously output multiple analog signals (حاضِر, الجهد االكهربى, etc.) and support multiple device control requirements.
High precision and stability
Provide accurate and continuous output signals to ensure reliable response of the actuator.
تصميم العزل الكهربائي
The output channel is isolated from the internal circuit of the controller to enhance anti-interference ability and system security.
modular installation
Supports slot installation for easy system expansion and maintenance.
Diagnostic function
Real time monitoring of module status and abnormal output signals facilitates maintenance and troubleshooting.
موثوقية الصف الصناعي
مناسبة للتشغيل المستمر على المدى الطويل, it has the ability to resist vibration, high and low temperature, والتداخل الكهرومغناطيسي.
working principle
The analog output module receives digital control signals from the controller → through an internal digital to analog conversion (DAC) circuit → outputs continuous analog signals → drives valves, pumps, or other actuators → returns module status information to the controller for system monitoring and self diagnosis.

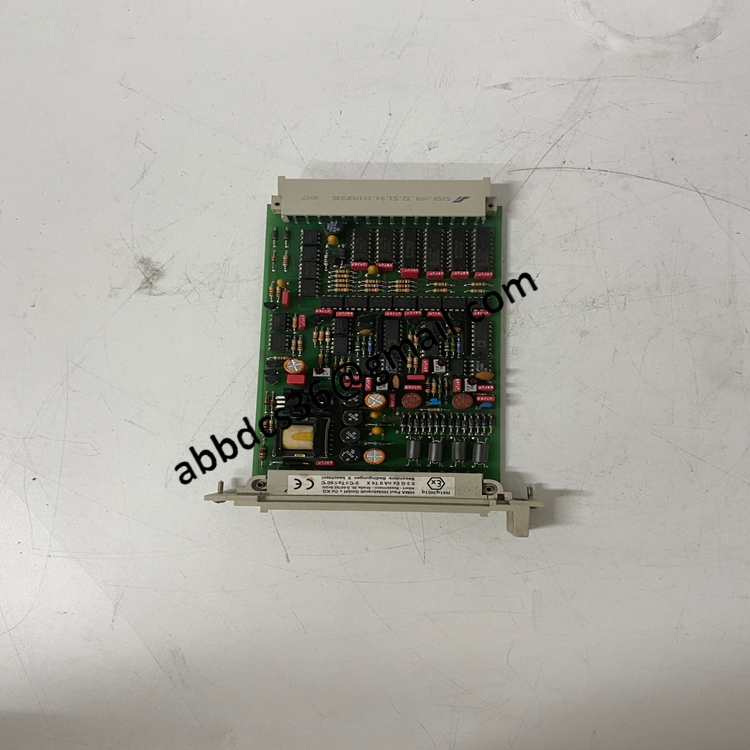

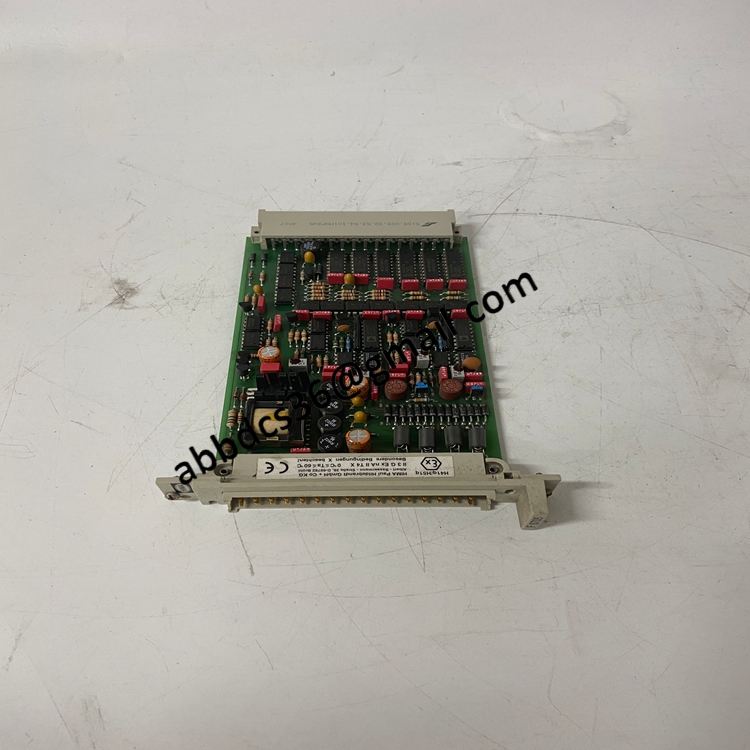

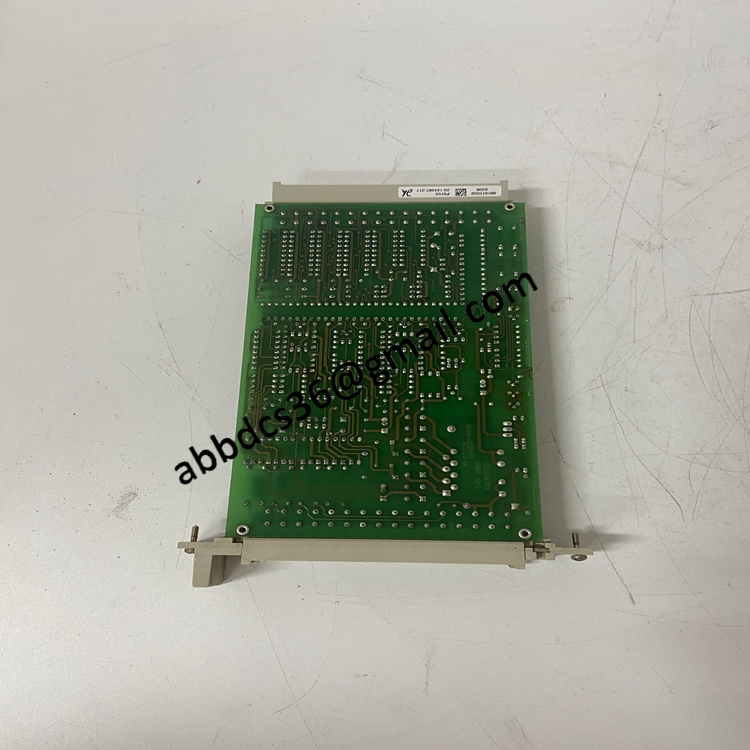

F6705 صور مفصلة للمنتج：
F6705 فيديو المنتج
