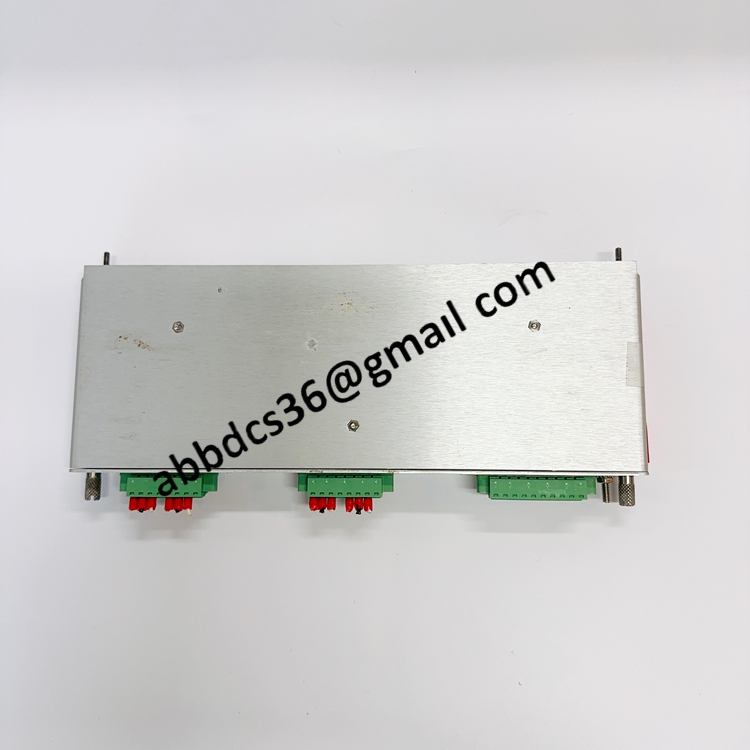

3500/42M 135137-01 Seismic Monitor

Product Manual：

Model: 3500/42M/135137-01

Type: Seismic Monitor

Purpose: Used for seismic vibration monitoring and protection of rotating machinery and key equipment

System positioning: Monitoring module in Bently Nevada 3500 mechanical protection system

Monitoring objects: large rotating equipment such as steam turbines, compressors, pumps, fans, etc

Input signal: Supports seismic velocity or acceleration sensor signal input

Monitoring function: Real time monitoring of the overall vibration level of the equipment

Protection function: Provides alarm and shutdown contacts to prevent equipment damage due to excessive vibration

Channel configuration: Multi channel design, capable of monitoring multiple measurement points simultaneously

Alarm setting: Supports multi-level alarm threshold settings to meet different working conditions requirements

Data processing: Built in signal processing and filtering to ensure accurate monitoring data

System integration: Linkage with display and communication modules through 3500 series racks

Application industries: electricity, petrochemicals, natural gas, metallurgy, water treatment, etc

Installation method: Plug in module, suitable for 3500 rack systems

Operational reliability: Industrial grade design, suitable for long-term continuous operation

Diagnostic function: supports self diagnosis and status indication for easy maintenance

Environmental adaptability: able to work stably in harsh industrial environments

Replaceability: can be directly replaced as an original module, reducing system downtime

System value: Early detection of mechanical abnormalities to avoid major equipment failures

Core advantage: Improve equipment operation safety, reduce maintenance and downtime costs
