810-800082-043 Printed Circuit Board
Product Manual：
Overview of 810-800082-043 Printed Circuit Board
1、 Functional Features
Provide control signal interface for communication with upper computer or controller
Supports multiple inputs and outputs, commonly digital I/O or analog interfaces
Equipped with voltage stabilization and signal shaping functions to ensure stable operation of the equipment
Can be used for modular device expansion or replacement of damaged boards
2、 Technical parameters (typical)
Power supply voltage: usually 24V DC or 5V DC (specific model depends on the equipment)
Input/output types: digital input, digital output, analog input, analog output
Interface type: may include terminals, slots, or backplane interfaces
Working environment temperature: 0-50 ° C (some industrial boards can be expanded)
Installation method: DIN rail or screw fixation
3、 Application scenarios
Industrial control system module
Automated production line interface board
Temperature control, motion control, servo drive system
PLC expansion module or interface board
IV. Summary
the 810-800082-043 is a multi-purpose industrial printed circuit board mainly used for expanding and connecting control signals to achieve reliable operation of equipment.

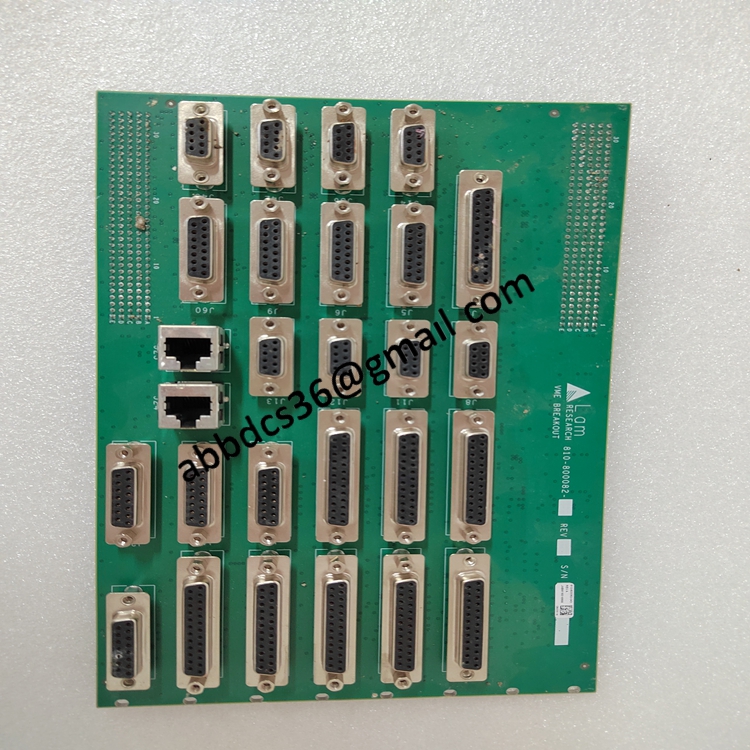

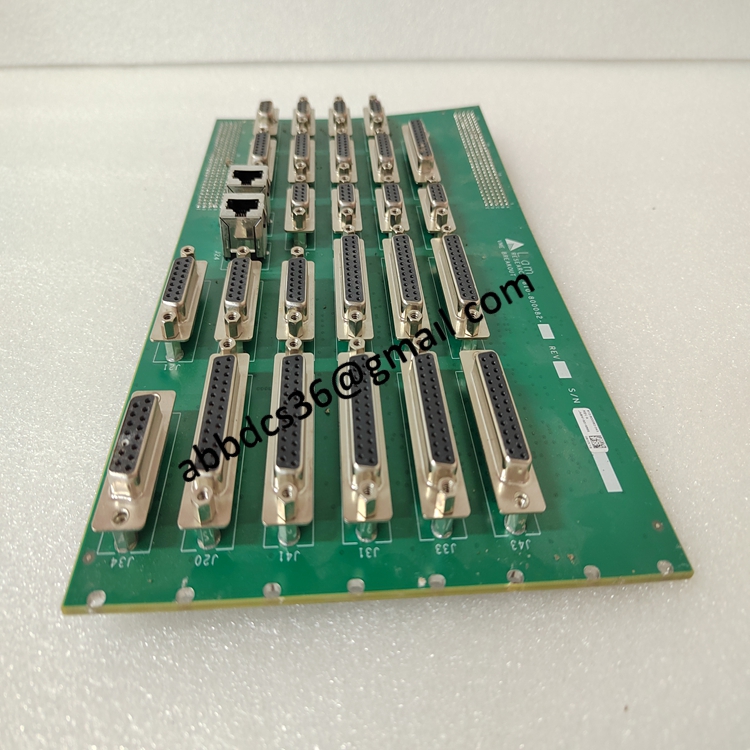

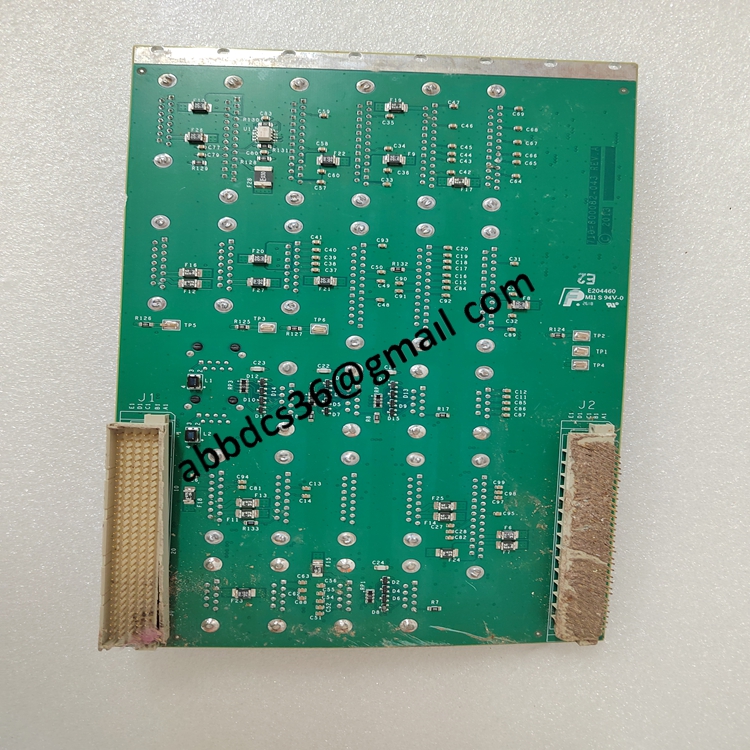

810-800082-043 Product detailed pictures：
810-800082-043 product video
