AS-BADU-204 Compact Analog Input Module
Product Manual：
AS-BADU-204 Compact Analog Input Module
This module belongs to the Schneider Modicon Compact series of analog input units, used for industrial field signal acquisition
Mainly used to receive analog signals from on-site sensors and convert them into data recognizable by PLC
Support multiple analog inputs (commonly 4-channel structure)
Can connect voltage or current signals, such as 0-10V, ± 10V, 4-20mA, etc
Internally equipped with A/D conversion function, converting analog signals into digital signals for processing
Equipped with signal filtering and anti-interference design to improve data stability
Support direct communication with Modicon Compact PLC system
Adopting a plug-in card structure for easy installation and replacement
Industrial grade design, suitable for complex on-site environments
With high resolution, it can meet the precision requirements of process control
Can be used for analog data acquisition of pressure, temperature, flow rate, etc
The module runs stably and is suitable for long-term continuous operation
Widely used in industrial automation control systems and process control systems
Mainly used for industrial field analog signal acquisition and conversion, it is one of the basic input modules in Modicon Compact system.

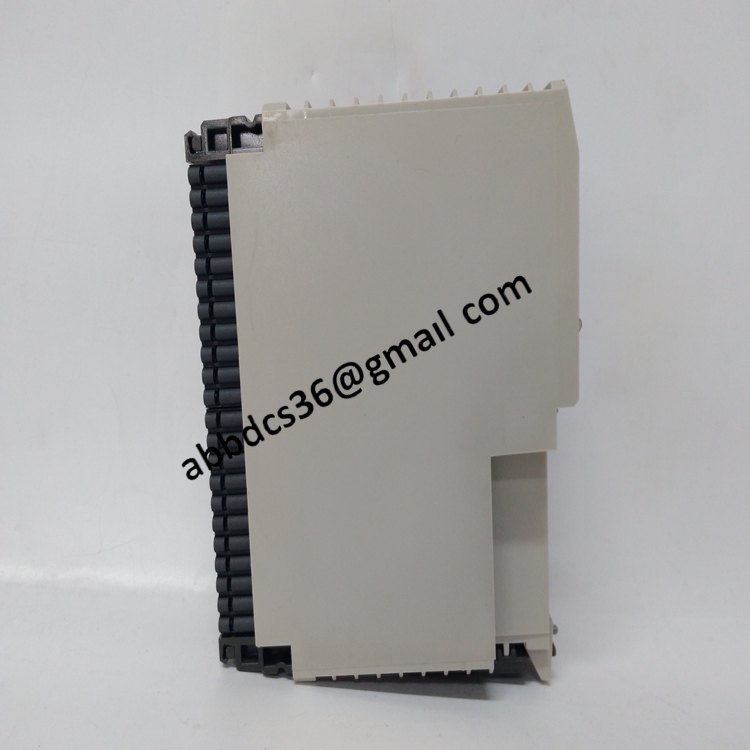

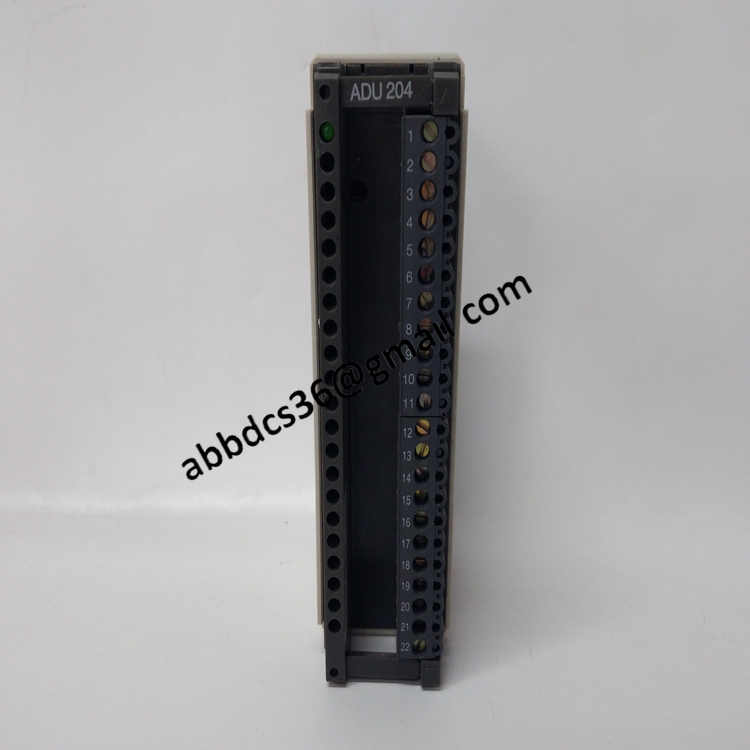

Product detailed pictures：
