CON021 9200-000006N Eddy Current Converter
Product Manual：
CON021 9200-000006N Eddy Current Converter
This module belongs to the signal conversion unit in the eddy current sensing system and is used for eddy current displacement/vibration measurement systems
The main function is to convert the high-frequency signal of the eddy current probe into a standard voltage or current output signal
Used in conjunction with eddy current probes and extension cords to form a complete non-contact measurement system
Demodulate and linearize the probe signal to improve measurement accuracy
Provide stable analog output signals for PLC or monitoring system to collect
Support multiple range configurations to adapt to different mechanical monitoring needs
Equipped with signal stability and anti-interference design, suitable for industrial environments
The output signal is usually a standard voltage or current signal (such as -10~10V or 4-20mA)
Support on-site installation or cabinet installation methods
Equipped with zero and gain adjustment functions, convenient for on-site calibration
High operational stability, suitable for long-term continuous monitoring applications
Commonly used for monitoring rotating equipment such as steam turbines, compressors, and motors
Compact structure, convenient for system integration and maintenance
It is mainly used for signal conversion and processing in eddy current sensing measurement systems and is one of the important interface modules in rotating machinery state monitoring systems.

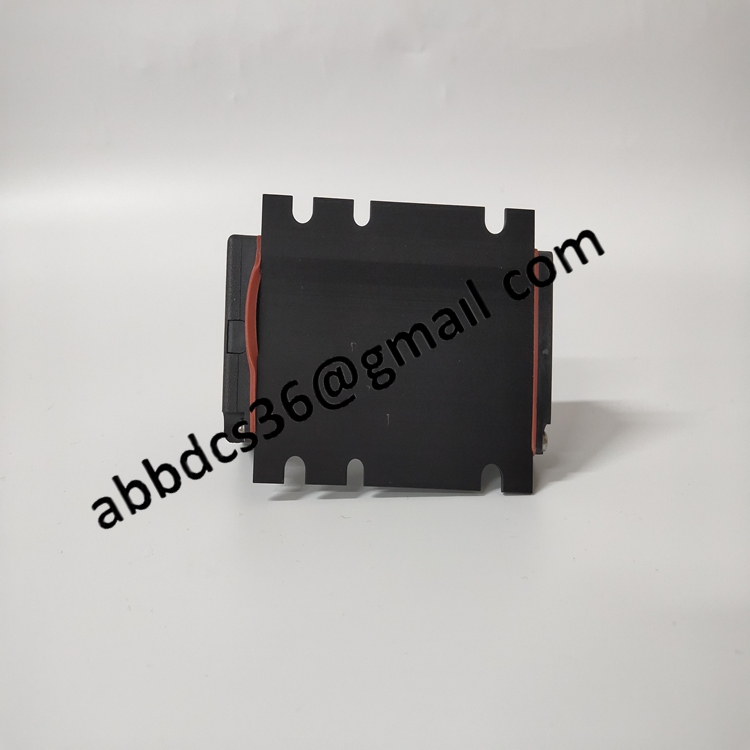

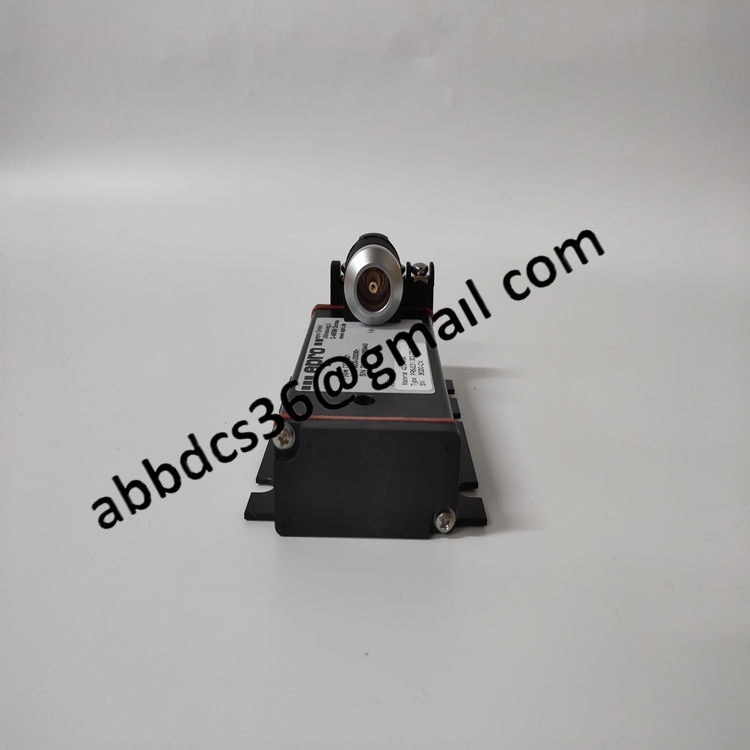

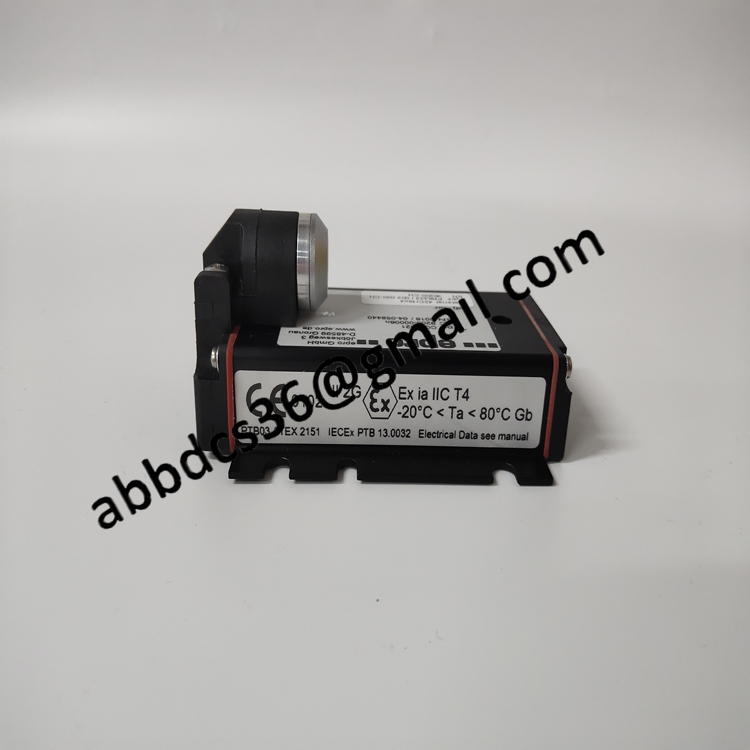

Product detailed pictures：
