G122-824-002 servo amplifier
Product Manual：
G122-824-002 servo amplifier
This module belongs to the amplifier unit in the MOOG servo control system and is used for closed-loop control signal processing
The main function is to amplify the small signal output by the controller into a power signal that can drive the servo valve
Internally adopting analog control structure, with fast response speed and good control continuity
Support proportional (P) and integral (I) control modes, which can be configured according to system requirements
Equipped with error signal input and feedback signal input functions, achieving closed-loop control
Can superimpose and amplify input signals to form precise control outputs
Capable of adjusting parameters such as gain, zero point, and integration time
Built in status indicator function for easy operation and fault diagnosis
Support external feedback signal access to improve control accuracy
Adopting industrial grade design to adapt to complex on-site environments
Strong anti-interference ability, stable and reliable operation
Support multiple control mode switching and parameter adjustment
Plug in card structure, easy to install and maintain
Suitable for continuous operation of industrial automation control systems
Mainly used for signal amplification and closed-loop control in industrial servo systems, it is one of the key drive modules in hydraulic and motion control systems.

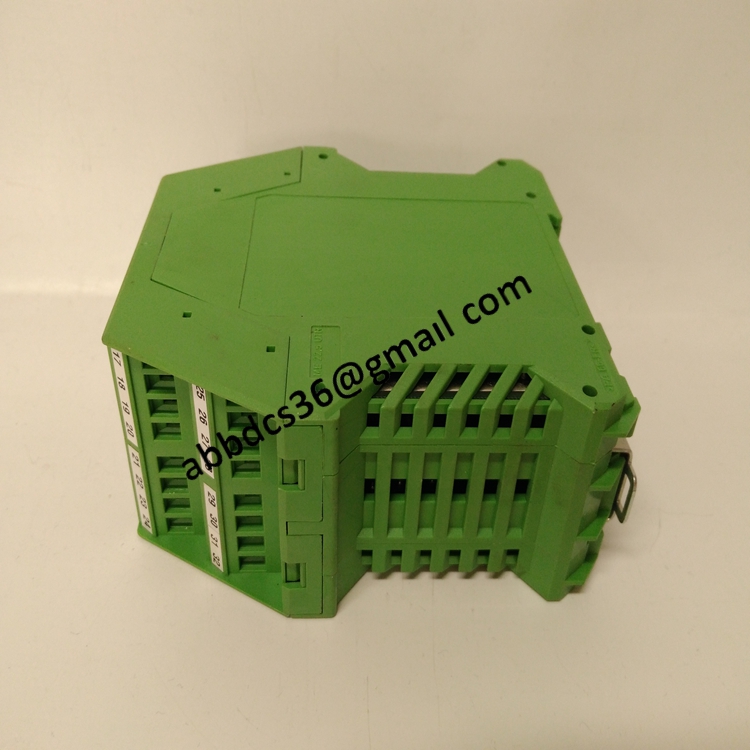

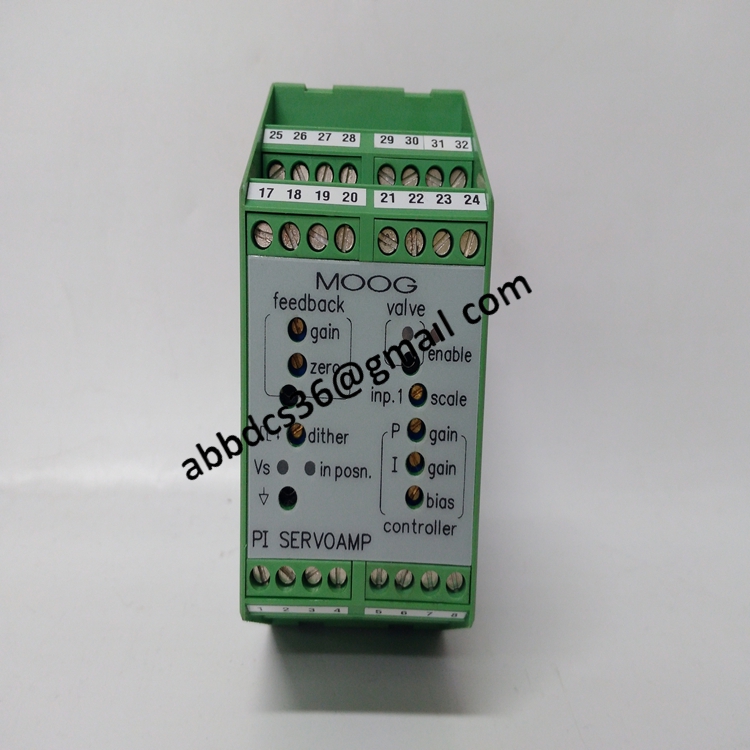

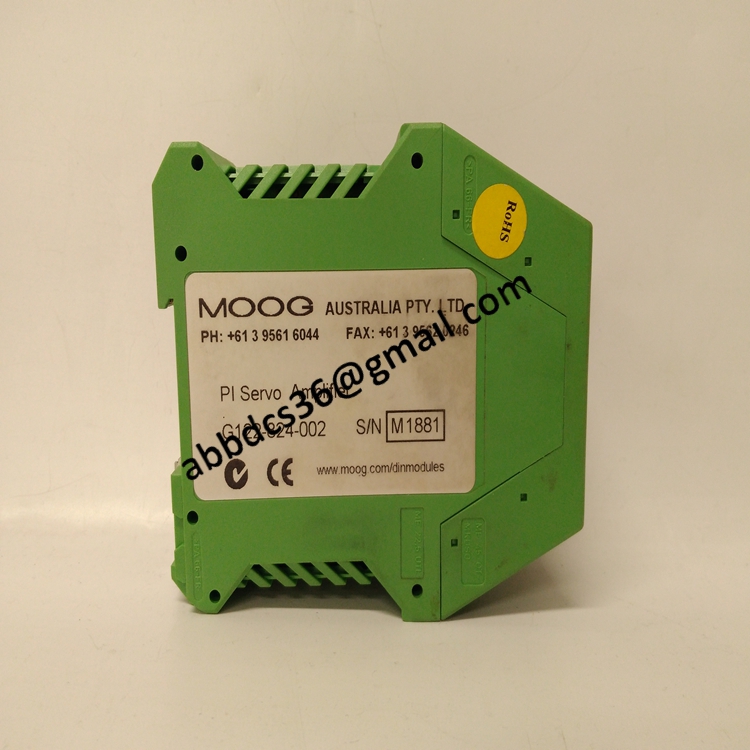

Product detailed pictures：
