JANCD-XCP01 System Control Board

Product Manual：

JANCD-XCP01 System Control Board

Overview
JANCD-XCP01 is a system control motherboard designed by Yaskawa Electric in Japan for its industrial robot controllers, especially the XRC series systems. This motherboard is the brain of the controller, responsible for processing program instructions and coordinating the operation of robots or automation equipment. It is usually installed in the CPU rack of the controller, forming a complete control system with power modules, I/O boards, and communication boards.

Basic specifications

Model: JANCD-XCP01
Type: System Control Motherboard/CPU Board
Power supply: 24V DC
Installation method: CPU rack installation
Function: Core computing, logical processing, real-time control
Expansion: Supports communication interface and storage expansion (such as PC card or CompactFlash)

Usage and Application

Control the operation of the entire robot or automation equipment
Perform motion interpolation calculation and real-time operation control
Exchange data with servo control board, I/O board, and communication board

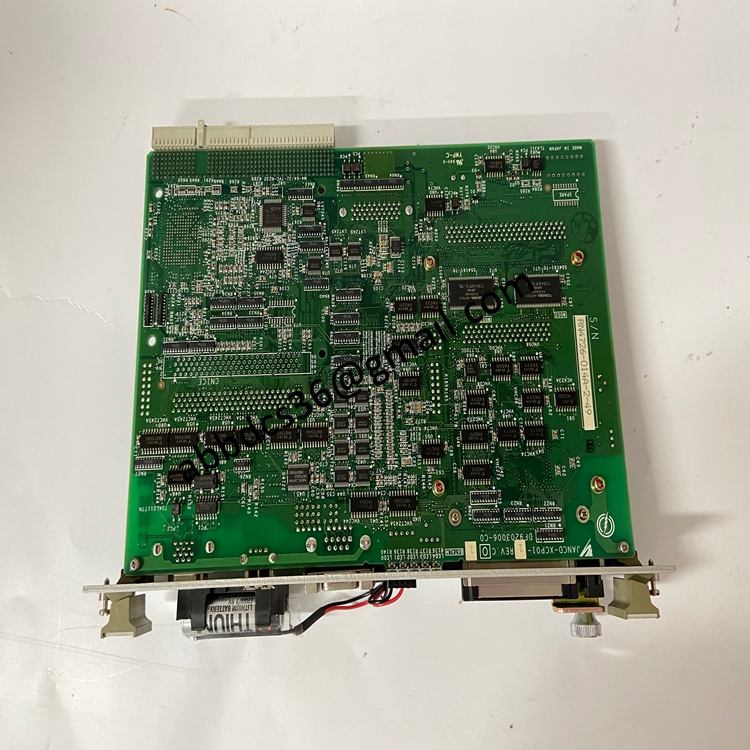

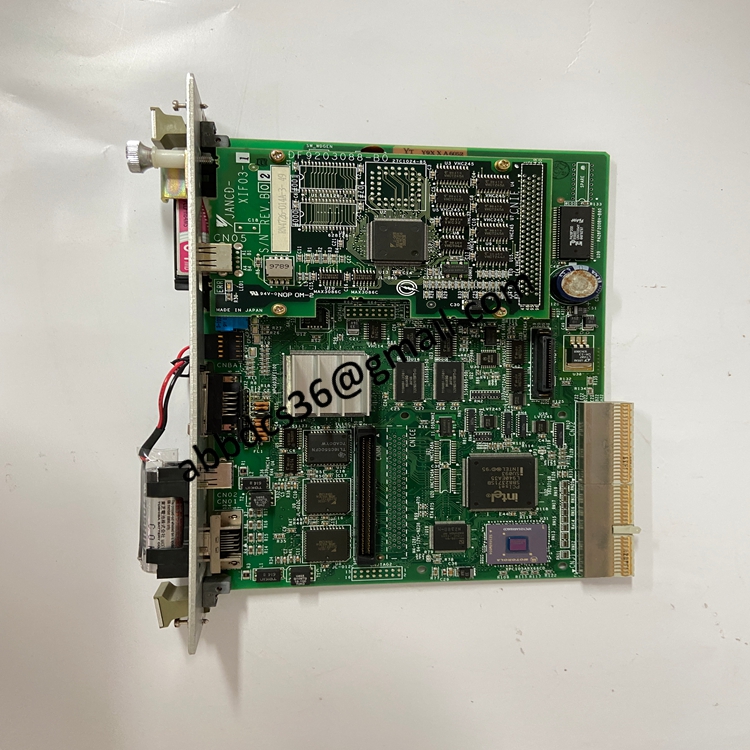

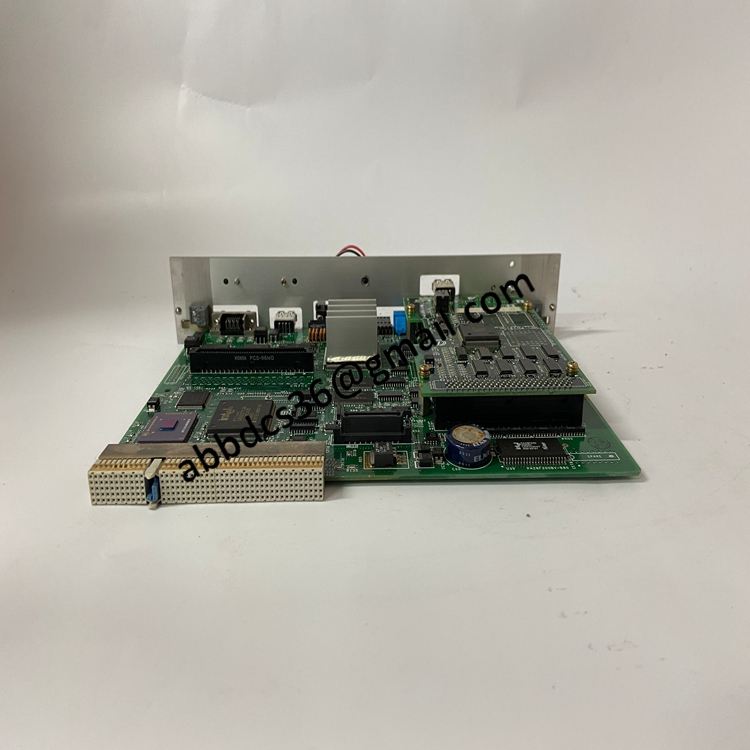

JANCD-XCP01 Product detailed pictures：
