PFTL101B 5.0KN 3BSE004191R1 Weighing Sensor
Product Manual：
ABB PFTL101B-5.0KN (3BSE004191R1) weighing sensor
Overview
PFTL101B-5.0KN is an industrial grade weighing/tension sensor produced by ABB, used for precise measurement of force or tension, widely used in industrial automation and process control systems.
Basic Information
Model: PFTL101B-5.0KN/3BSE004191R1
Type: Weighing Sensor/Tension Sensor
Rated capacity: 5.0 kN (approximately 500 kgf)
Output signal: mV/V, can be combined with a signal conditioner to output standard current or voltage signals
High precision, good linearity, and good repeatability
Material: Stainless steel or high-strength material
Protection level suitable for industrial environment
Installation method: pillow block or transverse tension measurement structure
Usage and Application
Measure the tension of rolls, films, paper, textiles, or metal strips
Cooperate with PLC or DCS system to achieve tension closed-loop control
Industrial weighing, force testing, and safety monitoring
Provide reliable and stable force measurement data to ensure production quality
PFTL101B-5.0KN is a key sensor module used for tension monitoring and force measurement in industrial automation production lines.

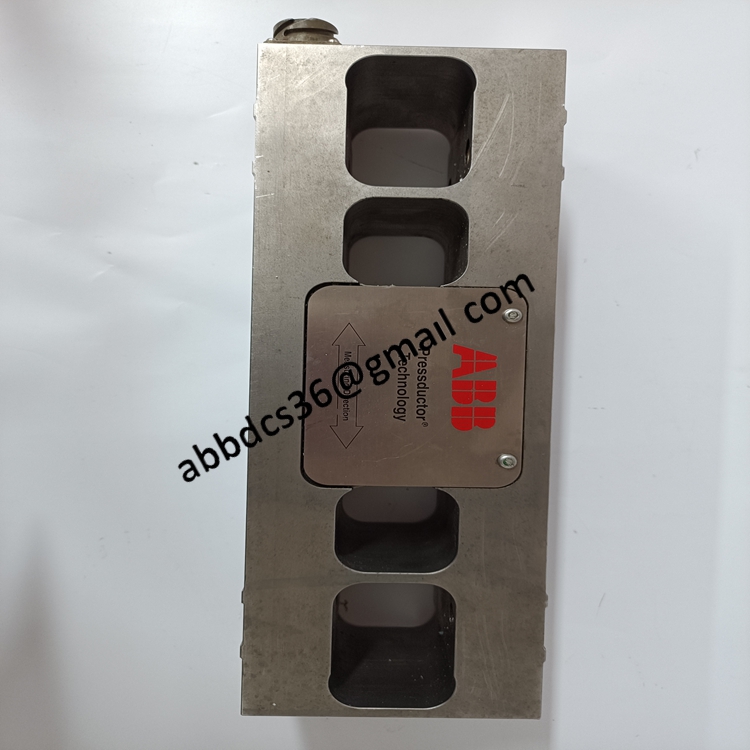

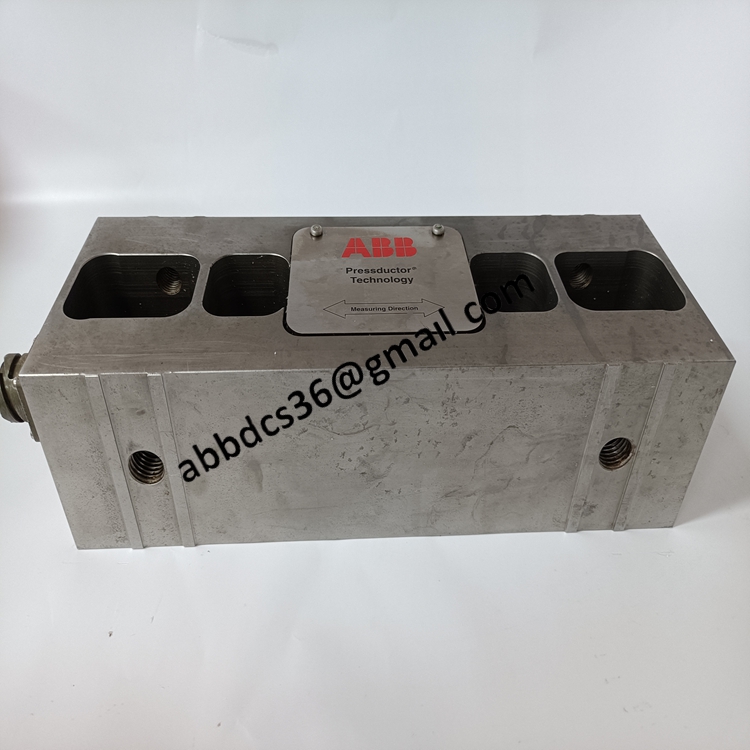

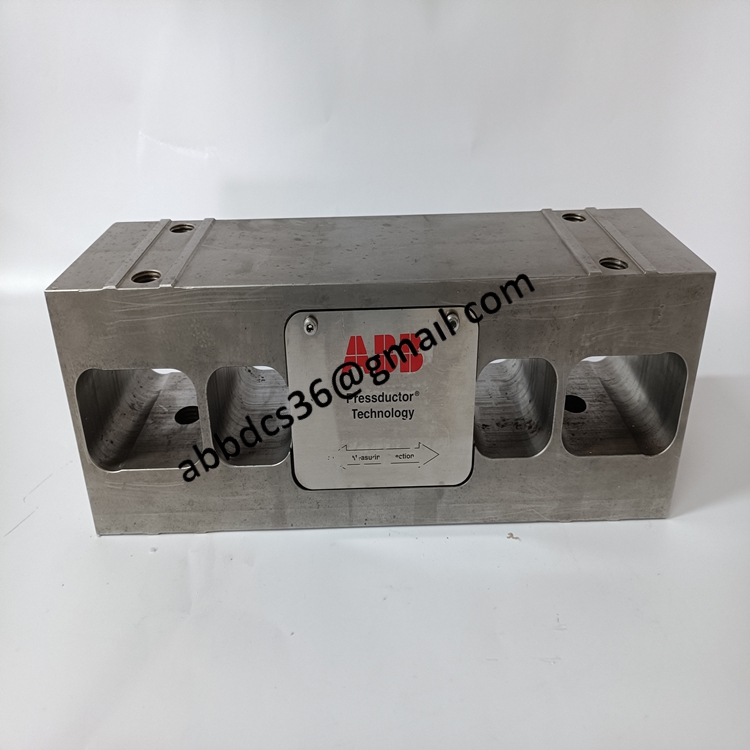

PFTL101B 5.0KN 3BSE004191R1 Product detailed pictures：
PFTL101B 5.0KN 3BSE004191R1 product video
