TRICONEX MP3101 main processor module

Product Manual：

TRICONEX MP3101 main processor module
Product positioning

Core processor module in high security industrial control systems

Responsible for executing logical operations, controlling programs, and coordinating systems

Widely used in power plants, petrochemicals, nuclear power, and other key industrial automation systems

core functionality

Implement redundant control logic to achieve safety system decision-making

Receive data from the input module and process it in real-time

Generate control signals and output them to the execution module to achieve device operation

Provide self checking and fault diagnosis functions to ensure system stability

Technical Features

Industrial grade design, high temperature resistance, vibration resistance, and electromagnetic interference resistance

Support triple redundant architecture to ensure continuous operation of critical tasks

High speed data processing capability to meet real-time control requirements

Modular structure design, easy to install, maintain, and upgrade

working principle

The main processor receives signals from digital/analog input modules

Internal CPU executes redundant security logic and control programs

Output control signals to the driver or execution module based on the calculation results

The system continuously self checks to ensure that any single point of failure will not affect the overall operation

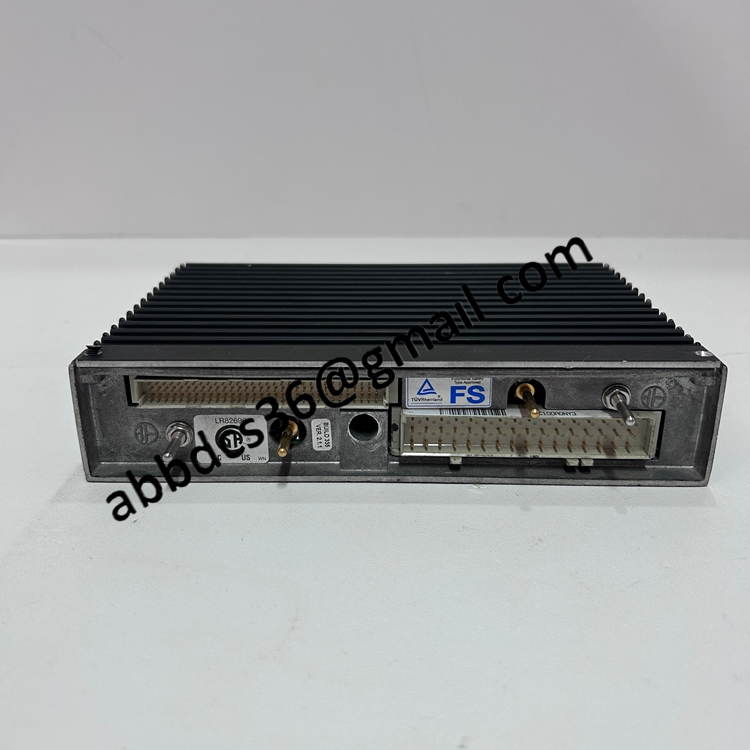

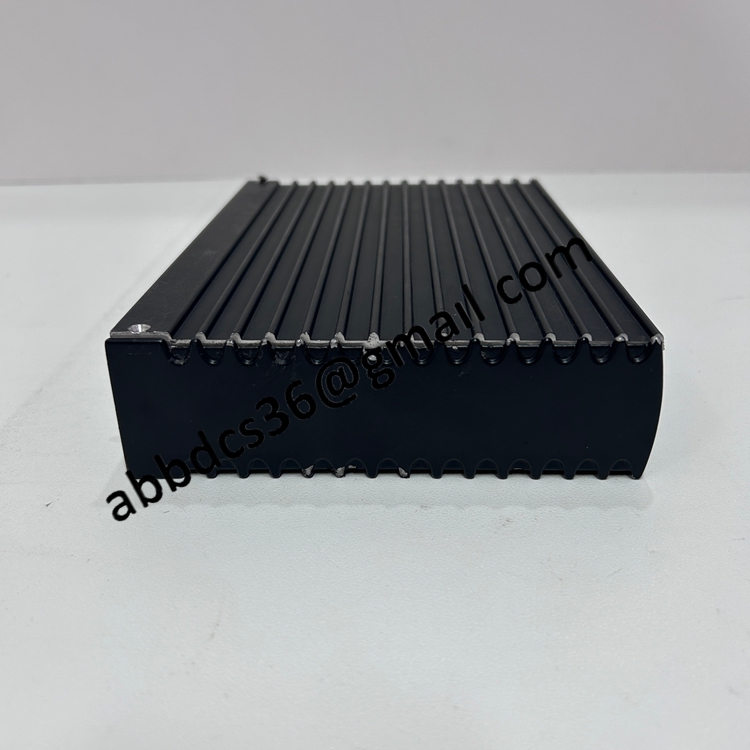

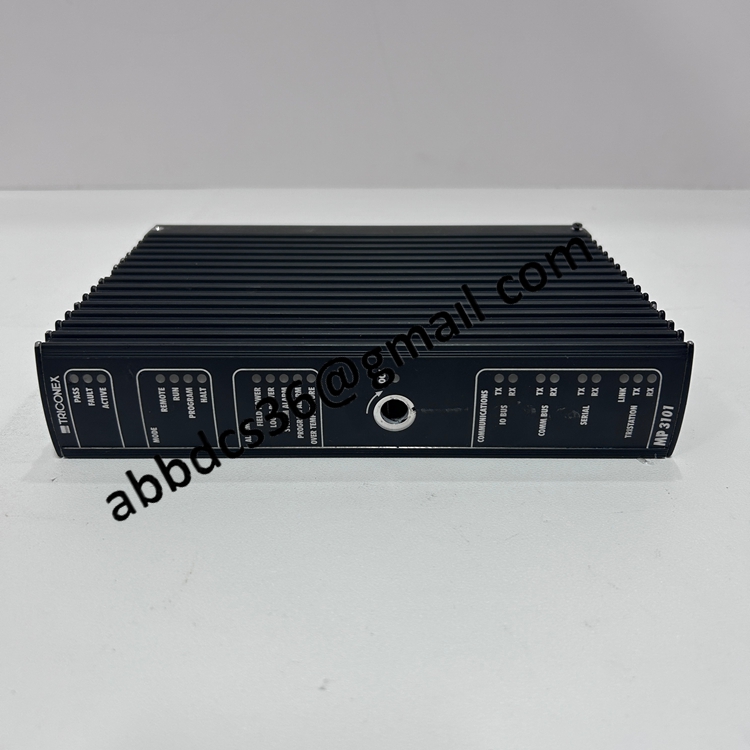

MP3101 Product detailed pictures：

MP3101 product video
