VMIVME-1128 Digital Input Board

Product Manual：

The VMIVME-1128 digital input board is a high-voltage digital input module based on the VME bus standard, mainly used in industrial automation, testing and measurement, and data acquisition systems to collect external digital signals to the host for processing.

core functionality

Provides 128 digital input channels that can simultaneously connect a large number of signal sources.

Built in Test function, capable of detecting and isolating fault inputs.

The front panel is equipped with a status indicator LED, which intuitively displays the channel status.

Overview of Technical Specifications

Number of input channels: 128.

Input voltage range: approximately 0.6 V to 34 V, capable of withstanding up to approximately 66 V DC.

Data transmission width: Supports 8, 16, or 32-bit access.

Interface standard: Compliant with VMEbus specifications, 6U dual Eurocard size.

Connector type: High reliability DIN type I/O interface.

working principle

The board collects digital signals from external devices (sensors, switches, relays, etc.), converts them into logical states through input settings, and places the data on the VME bus for system reading when accessed by the host.

Application scenarios

Automatic Test Equipment (ATE) and Test Measurement System

Industrial control system status monitoring and data acquisition

Sensor status acquisition and universal digital input

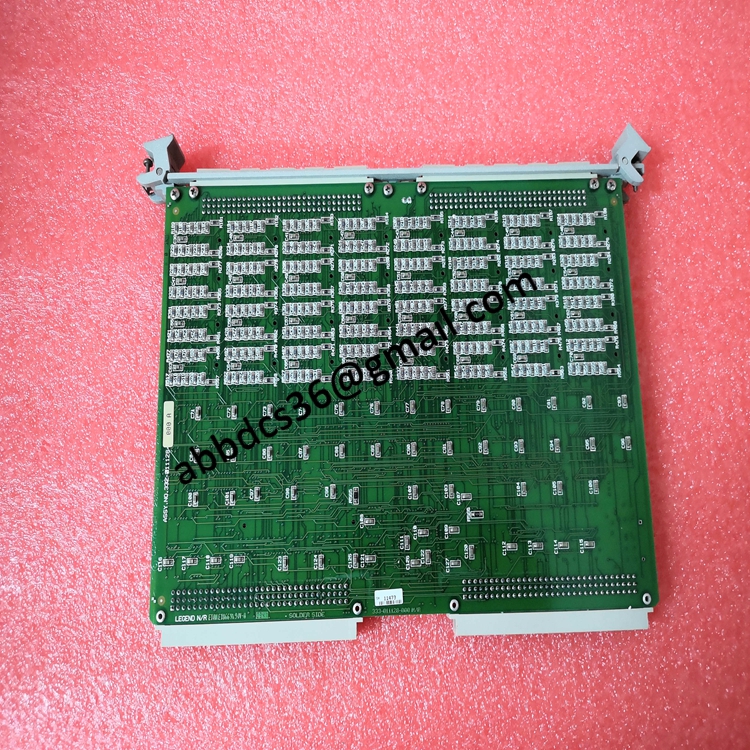

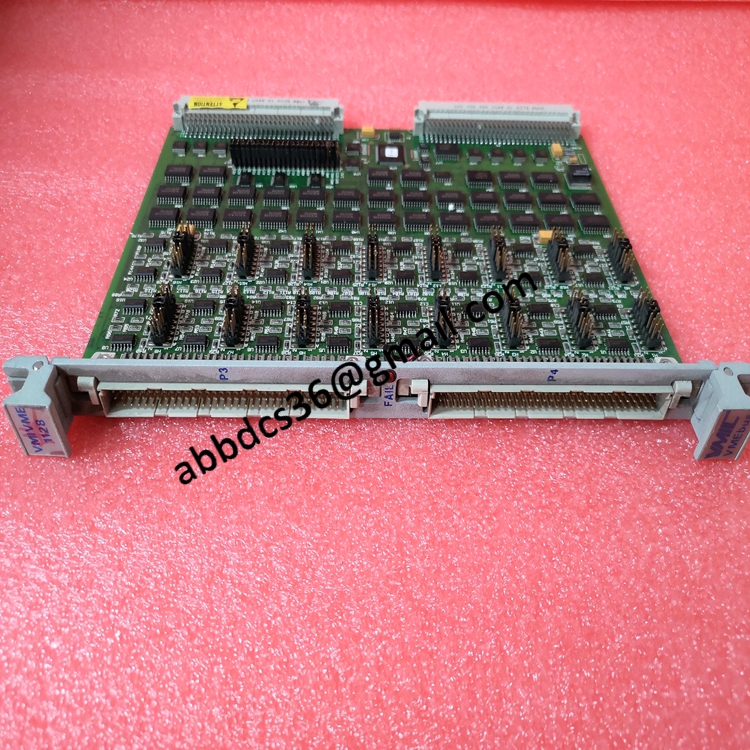

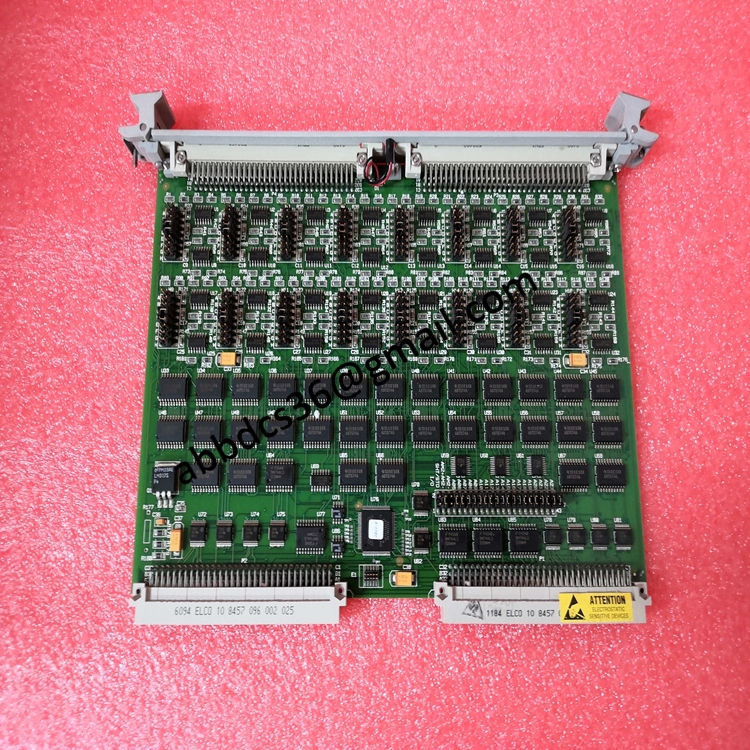

VMIVME-1128 Product detailed pictures：
