3500/22M 288055-01 Transient Data Interface Module
Product Manual：
Model: 3500/22M/288055-01
Type: Transient Data Interface Module
Purpose: Used for transient data acquisition and transmission of rotating machinery and key equipment
System positioning: Key interface module in Bently Nevada 3500 series mechanical protection system
Monitoring objects: rotating machinery such as steam turbines, compressors, pumps, fans, etc
Features:
Collect transient vibration or impact event data
Provide real-time data interface to the analysis system or upper computer
Signal input: Supports input from acceleration, velocity, or displacement sensors
Data output: digital interface, capable of transmitting to data collection or monitoring systems
Application scenarios: Monitoring of power plants, petrochemicals, metallurgy, and large rotating machinery
Installation method: Insert into the 3500 series rack for easy system integration
Operational stability: Industrial grade design, supporting 24/7 continuous operation
Protection function: It can be linked to an alarm or shutdown system to prevent mechanical damage
Environmental adaptability: resistant to high temperature, high humidity, and mechanical vibration environments
Maintenance convenience: Modular design for quick replacement or upgrade
Reliability design: high-precision sampling to ensure complete and reliable transient event data
Response performance: Quickly capture impact or vibration events to ensure analysis accuracy
Typical applications: mechanical protection analysis, status monitoring, fault diagnosis
Replaceability: Original modules can be directly replaced, reducing system downtime
Core advantage: Improve the transient event monitoring capability of rotating machinery, optimize fault prevention and maintenance strategies

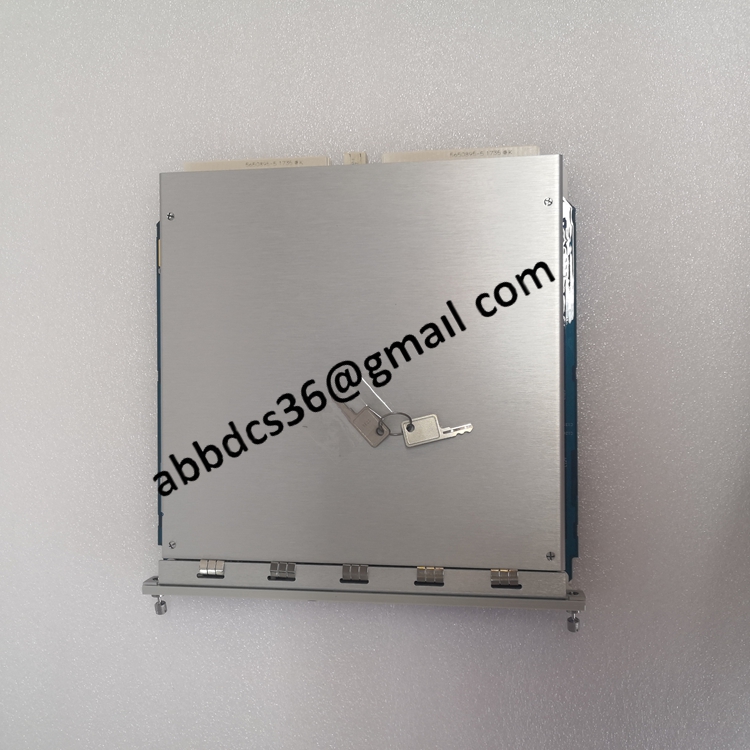

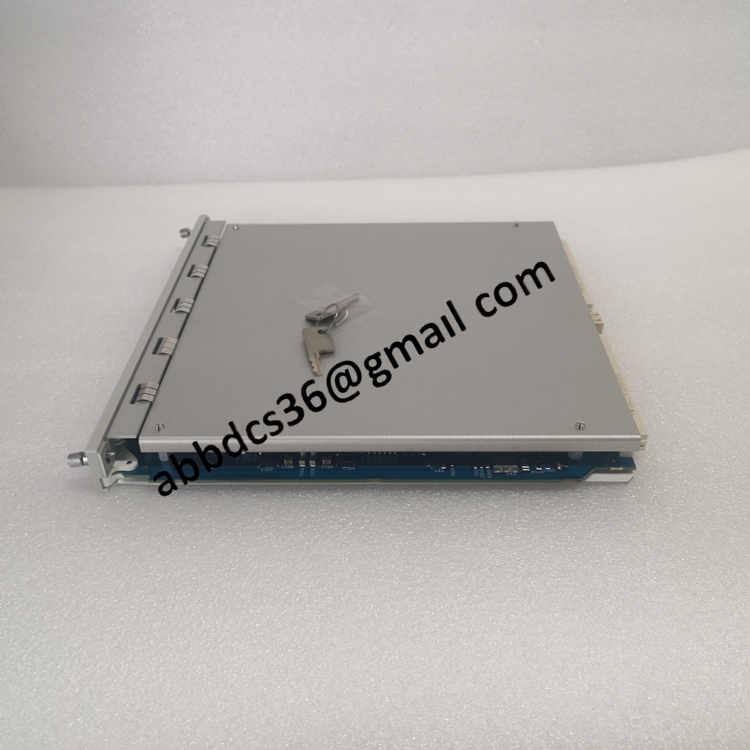

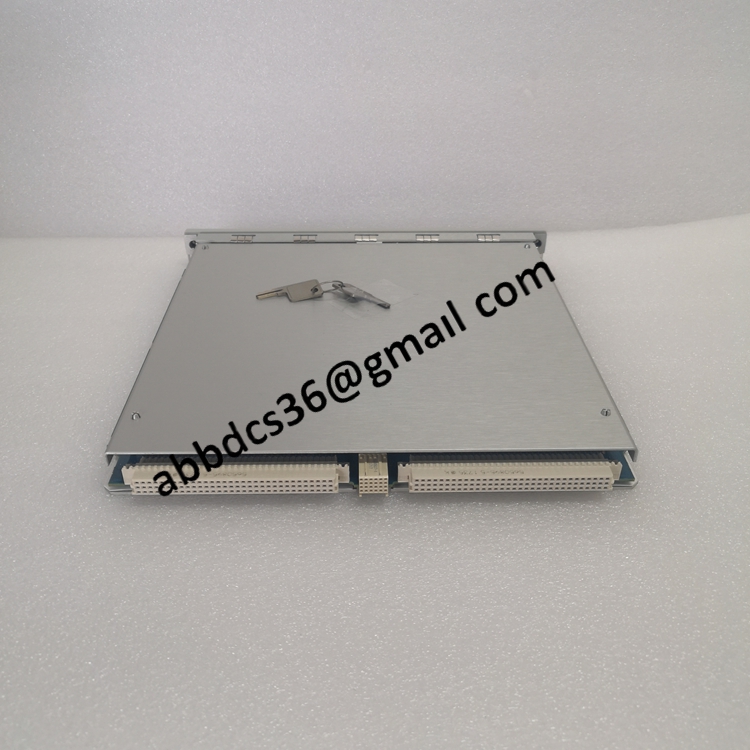

3500/22M 288055-01 Product detailed pictures：
