3503E AC/DC digital input module
Product Manual：
Regarding the 3503E AC/DC digital input module, the following engineering application instructions are compiled:
Type: Industrial Digital Input Module (DI Module)
Purpose: To collect on-site AC or DC switch signals and provide real-time status information for the controller
Input signal type: Supports AC/DC voltage signal, contact signal, or transistor output
Number of channels: Multi channel design, capable of simultaneously collecting multiple signals
Electrical isolation: isolate the input circuit from the controller to improve anti-interference ability
Response speed: High speed signal acquisition, suitable for real-time control and logical judgment
Protection function: overcurrent, short circuit, and overvoltage protection, ensuring the safety of modules and control systems
Status indication: LED indicates the status and fault alarm information of each channel
Installation method: Modular plug-in design, easy to expand, maintain, and replace
Reliability: Industrial grade design, suitable for continuous 24/7 high load operation
Application scenarios: Factory automation, power plants, petrochemicals, chemical production lines, mechanical and electrical equipment monitoring
System function: Transmit on-site status information to the controller, providing decision-making basis for the automation system
Engineering value: Achieving reliable and real-time status acquisition, improving control system response speed and safety

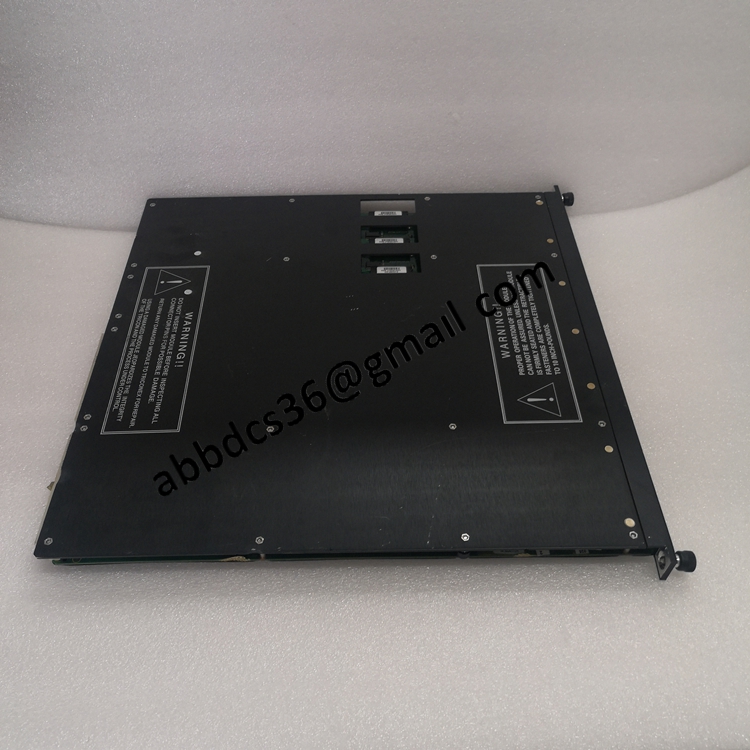

3503E Product detailed pictures：
