1746-HSCE Logic Controller

دليل المنتج：

1746-HSCE is a SLC500 series high-speed counting module that collects encoder pulses to achieve positioning and speed measurement.
1. Model 1746-HSCE, compatible with AB SLC500 complete machine rack.
2. Single channel ABZ orthogonal pulse access, with a maximum counting frequency of 50kHz.
3. Support frequency division of one, two, four, and flexible adjustment of measurement accuracy.
4. Compatible with 5V and 24V encoder wiring.
5. Four collector high-speed output, fixed-point triggering of external actuators.
6. It has three working modes: interval counting, speed measurement, and synchronous sequence.
7. Channel and backplate high voltage isolation to block on-site interference from entering the system.

8. Powered by the rack backplane 5V, no external auxiliary power supply is required.
9. Side dip switch for quick setting of hardware parameters on site.
10. Panel indicator lights provide intuitive feedback on operating and error reporting conditions.
11. There are three options for resetting: Z-phase, external limit, and program.
Working range of 12.0~60 ℃, the conventional industrial control cabinet operates stably.
13. It can be put into use with CPUs of 5/02 or above models.
14. It is commonly used for length control of cutting, conveying, and winding equipment.
في ملخص, 1746-HSCE has accurate counting and simple configuration, making it a commonly used card for position control in small equipment.

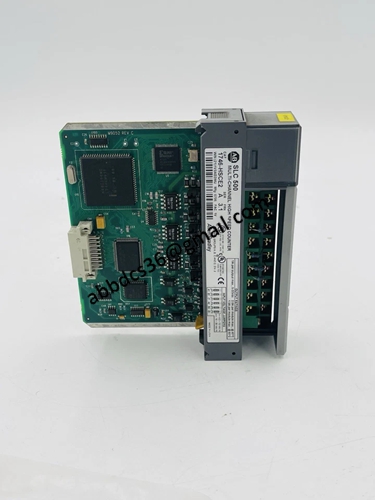

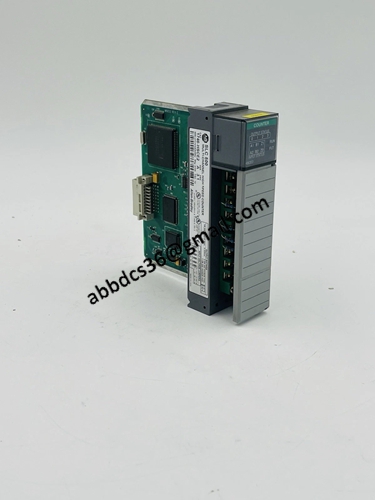

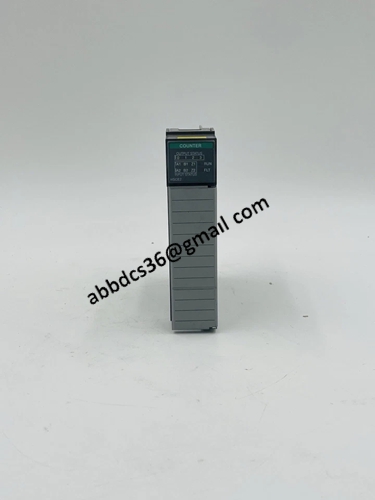

صور مفصلة للمنتج：
