1786-RPFPXLB Short Distance Fiber Optic Module
دليل المنتج：
1786-RPFPXLB is a Rockwell Allen Bradley ControlNet series short distance fiber optic relay module (belonging to the fiber ring network short distance type) designed specifically for industrial control network signal extension and isolation.
Adapt to the ControlNet bus to achieve copper fiber optic medium conversion and signal relay.
Using 62.5/125 μ m multimode fiber with a wavelength of 1300nm for short distance and high-speed transmission.
Single module supports dual fiber channels and is compatible with point-to-point and ring topologies.
Maximum transmission distance * * ≤ 1km * * (short distance scenario), link attenuation budget ≤ 10.5dB.
The communication speed is 5Mbps, which meets the real-time control requirements of ControlNet.
The interface is an ST type fiber optic connector, which is easy to plug and unplug and industrial durable.
It needs to be equipped with a 1786-RPA/B relay adapter for power supply and backplane communication.
The power supply is provided by an adapter with 5V DC and a maximum current of approximately 400mA.
Dual LED status indicator lights, visually displaying the operation status of channels and modules.
Support electrical full isolation to completely eliminate ground potential interference.
Working temperature range of * * -40 ℃~+70 ℃ * *, suitable for harsh industrial environments.
Protection level IP20, suitable for installation inside cabinets.
Supports DIN rail installation, compact size, and simple wiring.
Compatible with modules from the 1786-RPFS, RPFM, RPFRXL and other series.
Industrial grade anti vibration design, certified by CE/UL, ensuring long-term stable operation.
إنهاء
1786-RPFPXLB is a key module for the fiber optic transformation and anti-interference expansion of ControlNet network, with short distance, high speed, strong isolation, and high reliability as its core.

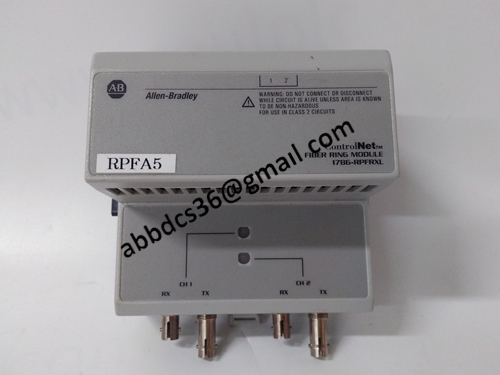

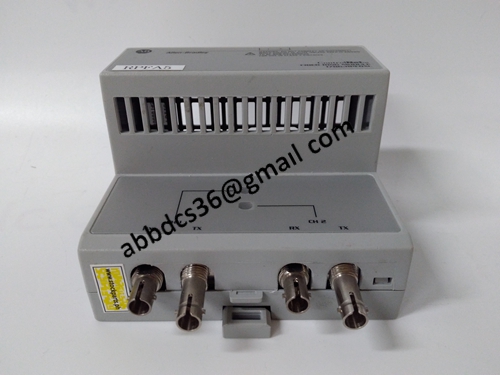

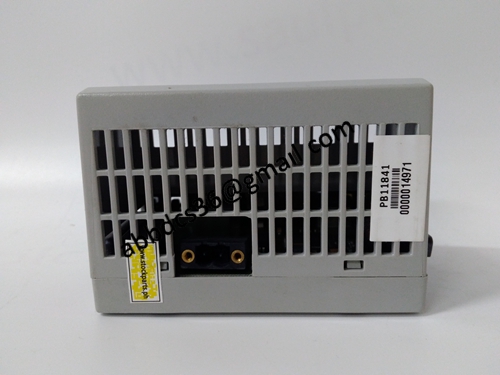

صور مفصلة للمنتج：
1786-RPFPXLB
