5X00225G01 Control Base Component

دليل المنتج：

5X00225G01 is a 4-slot control base component of Emerson Ovation DCS system, used for installing and docking various control cards.
Standard 4-slot design, capable of simultaneously carrying DPU controller and multiple I/O modules.
Connect a 24VDC power supply to uniformly distribute power to slot cards.
Integrate high-speed backplane bus to achieve signal and data transmission between modules.
Built in circuit protection to prevent overload and short circuit damage to various boards.
Support module hot plugging, no need to shut down the entire unit for maintenance and replacement.
Adapt to dual DPU redundant architecture to ensure continuous system operation.
مجهزة بأضواء مؤشر الحالة, the power and operating status are clear at a glance.

Ultra wide working temperature range, suitable for complex working conditions such as power plants and chemical industries.
The overall structure is reinforced with strong anti vibration ability.
Excellent electromagnetic protection design, effectively resisting on-site electromagnetic interference.
IP20 protection level, dustproof and anti misoperation, safe for use in the computer room.
Aluminum alloy material paired with flame-retardant backplate, durable and highly safe.
Accurate interface positioning, smooth card insertion, and stable connection.
Perfectly matched with DPUs, إمدادات الطاقة, and various I/O modules of the same series.
Universal spare parts and accessories, easy replacement of old DCS equipment.
في ملخص, 5X00225G01 integrates load-bearing, power supply, ووظائف الاتصال, and is the fundamental load-bearing unit of Ovation control system.

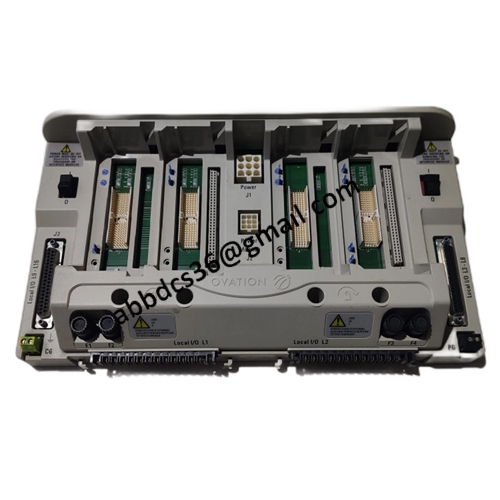

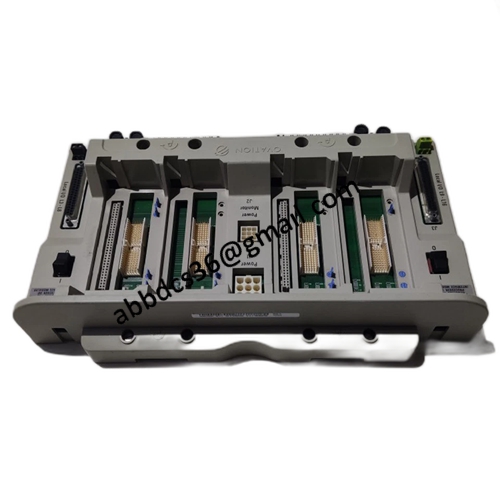

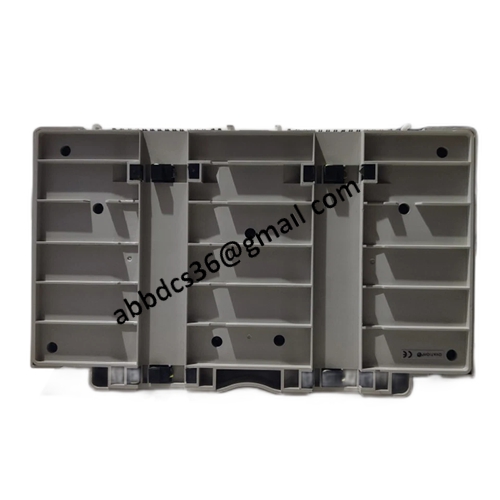

صور مفصلة للمنتج：

5X00225G01
