6GK1561-3AA00 interface module

دليل المنتج：

1、 المعلومات الأساسية
نموذج: 6GK1561-3AA00 (CP 5613)
Brand/Series: Siemens/SIMATIC NET
يكتب: 32-bit PCI communication card (3.3/5V, 33/66MHz)
Interface: 1 × DB9 (PROFIBUS)
Status: discontinued (EOL), upgraded model 6GK1561-3AA02
2、 Core parameters
Communication protocol: PROFIBUS-DP (master station) MPI、S7、PG/FDL
Speed: 9.6 kbps~12 Mbps (PROFIBUS)
Power supply: PCI bus power supply (3.3V/5V)
Power consumption:<2دبليو
Temperature: 0 ° C~+55 ° C (working), -40 ° C~+70 ° C (storage)
Size/Weight: 125 × 107 × 18 mm/Approximately 150g
Certification: CE, UL, CSA, RoHS

3、 Key functions
PROFIBUS-DP master station: can manage up to 125 DP slave stations, supporting periodic/non periodic data exchange.
High speed data exchange: 12 Mbps speed, suitable for real-time communication of PLC, DCS, and servo systems.
DP-RAM high-speed interface: direct memory access, high data throughput, low latency.
Multi protocol compatibility: Supports MPI (187.5 kbps), S7 communication, and PG programming functions simultaneously.
Configuration and Diagnosis: Equipped with SIMATIC NET software, supporting parameterization, network diagnosis, and fault analysis.
Industrial grade stability: قدرة قوية ضد التدخل, suitable for strong electromagnetic and vibration environments in workshops.
4、 Typical applications
Industrial computer/PC connected to Siemens S7-300/400 PLC, ET200 remote I/O
PROFIBUS network monitoring, الحصول على البيانات, and upper computer control
Communication transformation of machine tools, packaging, textile, metallurgical and other equipment
Replace the old CP5611/CP5512 and improve the performance of the main station

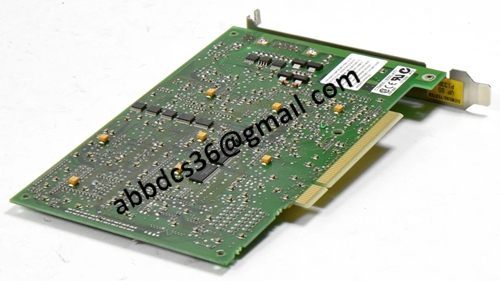

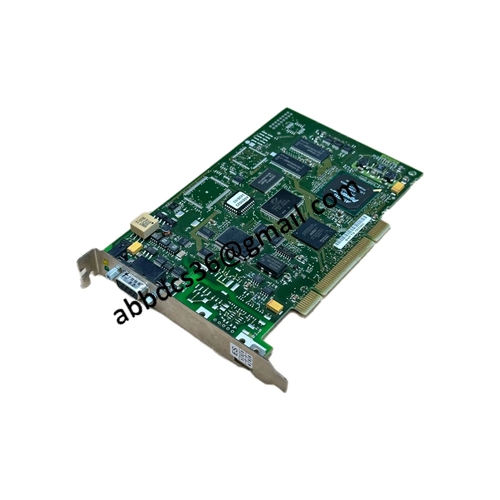

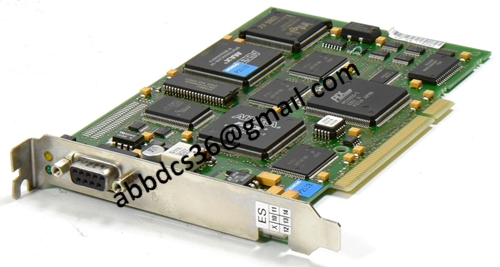

صور مفصلة للمنتج：

6GK1561-3AA00
