Bobst 704-1108-01 وحدة الإدخال/الإخراج
دليل المنتج：
Bobst 704-1108-01 وحدة الإدخال/الإخراج
Bobst 704-1108-01 is a switch I/O module for the 700 series electronic control system, responsible for collecting sensor signals and driving actuators for the entire machine. It is the signal hub for gravure/die-cutting equipment.
Original factory standard I/O board, compatible with 703-KS electrical control box, 707 sets of precision and S2000/S920 gravure printing machine.
16 inputs+16 outputs, compatible with 24VDC switch signal, NPN/PNP universal.
Input side: Receive signals such as proximity switches, photoelectric eyes, limit switches, temperature/pressure alarms, إلخ.
Output side: Drive solenoid valves, contactors, أضواء المؤشر, motor start stop and other actuating components.
Onboard optoelectronic isolation, input/output and system bus electrical isolation, strong anti-interference.
24VDC power supply, wide voltage ± 20%, low power consumption, low temperature rise, suitable for long-term operation in the workshop.
Integrated surge absorption/short circuit protection to prevent damage to the board caused by load side impact.
Status LED indicator light: Each I/O is an independent light, making it easy to identify running/faults and quickly locate them.
Standard slot installation, in-situ replacement 704-1108-02/03, no need to change wires, التوصيل والتشغيل.
Industrial grade three proof coating (moisture-proof/dustproof/oil proof), suitable for harsh working conditions in printing workshops.
درجة حرارة العمل -10 درجه مئوية~+60 درجه مئوية, components resistant to vibration, stable long-term continuous operation.
The interface is gold-plated, anti-oxidation, anti virtual connection, suitable for frequent plugging and long-term use.
Collaborate with 701-1091-03 communication board, 704-1257-02 motor board, و 704-1166-03 power board to form a network.
Common faults: No input/output on a certain circuit, signal jitter, LED not lit (mostly due to optocoupler/relay aging).

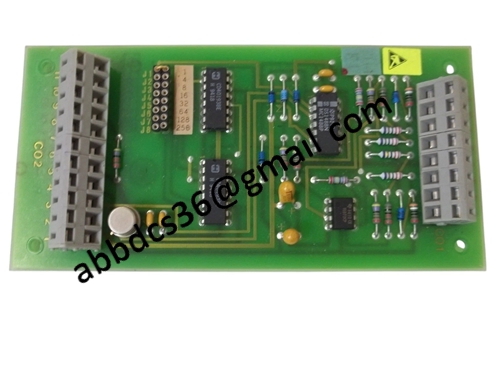

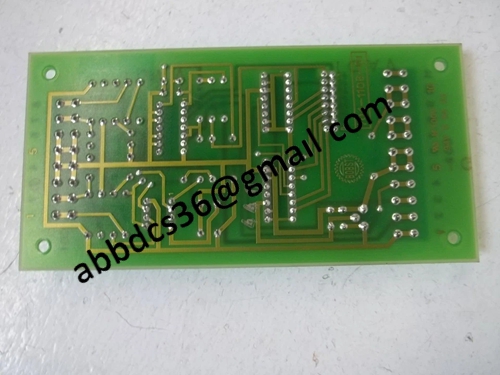

صور مفصلة للمنتج：
704-1108-01
