CSP CSR70 Printed Circuit Board

دليل المنتج：

**CSP CSR70 Printed Circuit Board (ثنائي الفينيل متعدد الكلور) * * is a specialized circuit board used in industrial control systems or electronic devices to carry electronic components, integrated circuits, and connection lines, enabling device control, signal transmission, and functional execution. This PCB is usually used as the core carrier of a certain control unit or module, and is the basic hardware for the operation of the entire circuit system.

Main function:

Carrier function: Provide mechanical support and electrical connections for electronic components such as chips, resistors, capacitors, connectors, إلخ.

Signal transmission: Connect various functional units through copper lines to achieve the transmission of data signals and power.

Typical features:

هيكل مدمج: Reasonable wiring and stacking design result in small circuit board area and high performance.

Application fields:

نظام التحكم الآلي الصناعي

PLC/DCS control cabinet board

Industrial communication equipment

Industrial instruments and meters

Automatic equipment and robot control module

في ملخص, the CSP CSR70 printed circuit board is an important component of industrial control equipment, responsible for electronic connections, signal transmission, and functional implementation. It is the foundation for stable operation of various control modules.

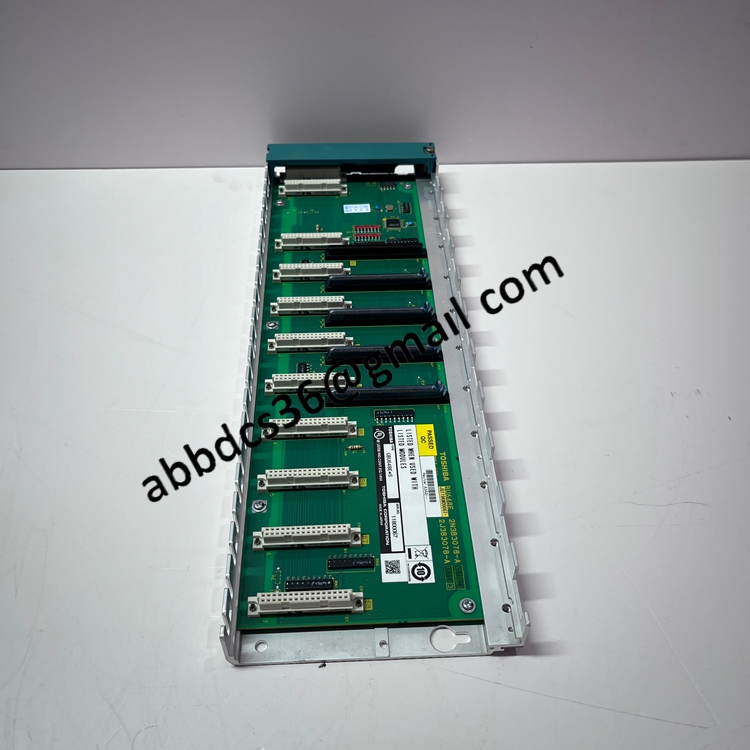

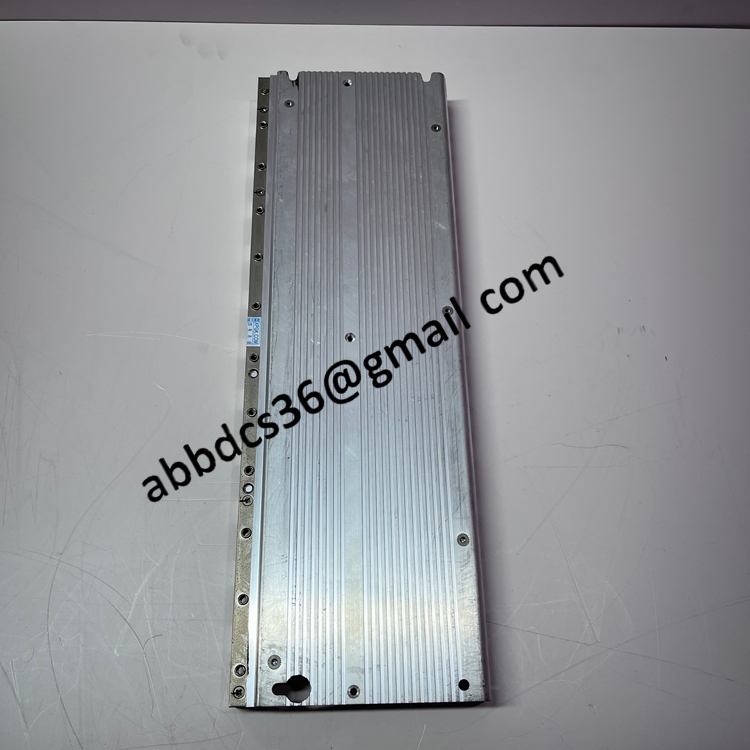

CSR70 صور مفصلة للمنتج：

CSR70 فيديو المنتج
