DS200TBQCG1AAA Printed Circuit Board

دليل المنتج：

DS200TBQCG1AAA is a TBQC type RST analog I/O terminal board for GE Mark V Speedtronic system, used for terminal connection and signal conditioning of milliampere level analog signal input/output.
Brand and model: GE General Electric, model DS200TBQCG1AAA, functional abbreviation TBQC.
Series: Mark V Speedtronic, compatible with EX2000/DC2000 drive and excitation systems.
Core positioning: Simulate I/O terminal boards to achieve signal conversion and isolation between controllers and on-site sensors/actuators.
Terminal configuration: 2 sets of 83 pin terminal blocks, a total of 166 wiring terminals, supporting high-density signal access.
Onboard interface: 3 40 pin connectors, 3 34 pin connectors, 5 sets of main connections (JBR/JFR/TEST/JBS/T/JFS/T).

Configure jumpers: 15 jumpers that can flexibly configure signal range, isolation, and filtering parameters.
Signal type: Milliampere level analog I/O, supporting standard industrial signals such as 4-20mA, 0-20mA, ± 10V, إلخ.
Electrical isolation: Channel level electrical isolation, with a maximum isolation voltage of 2500Vrms and strong anti-interference ability.
Signal conditioning: Built in filtering, voltage limiting, and clamping circuits to protect the backend control board.
Power supply specification: 24VDC, powered by the system backplane, low power consumption.
Physical characteristics: multi-layer industrial PCB+conformal coating, moisture-proof, dustproof, and vibration resistant.

Working environment: -20 ℃~+70 ℃, suitable for harsh environments such as power plants and metallurgy.
طريقة التثبيت: Standard cabinet slot type, easy to plug and unplug, من السهل الحفاظ عليها.
System compatibility: Perfectly compatible with Mark V, TMR triple redundancy, and DirectO-MATIC 2000 systems.
سيناريوهات التطبيق: Gas turbine/steam turbine control, industrial transmission, excitation system, DCS analog signal terminal.
DS200TBQCG1AAA is a critical interface for analog signal links in the Mark V system, providing reliable and isolated signal connections between the control board and field devices.

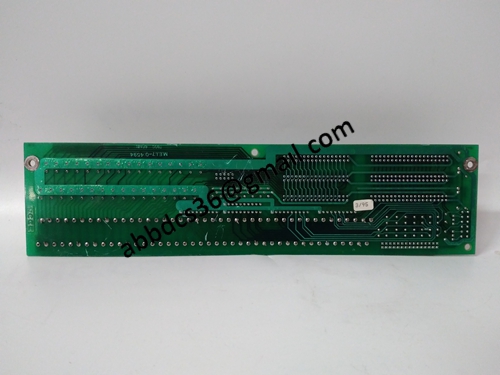

صور مفصلة للمنتج：

DS200TBQCG1AAA

فيديو المنتج
