DS200UDSAG1ADE excitation marking board

دليل المنتج：

DS200UDSAG1ADE is a GE DS200 series excitation marker board used in the excitation control system of generator sets.
Integrated main control chip, responsible for excitation related operations and logic processing.
Equipped with digital tubes and LED indicator lights, real-time display of device operation and fault status.
with keyboard interface, supporting on-site parameter setting and functional operation.
Equipped with an RS-232 communication port, it can interface with higher-level devices to complete data exchange.
Onboard voltage regulator circuit, realizing voltage conversion, ensuring stable and reliable power supply.
The storage chip retains the set parameters, and data will not be lost after power failure.

The working temperature zone is suitable for industrial sites and operates stably under high and low temperature conditions.
Equipped with power on self-test and fault diagnosis functions, quickly locate abnormal problems.
Standard board specifications, rack mounted installation, easy disassembly and replacement.
Anti vibration and anti-interference design to meet the long-term continuous operation requirements of the unit.
Coordinate the main controller to regulate the excitation current and stabilize the output voltage of the generator.
Compatible with the complete excitation control system of GE Mark V and EX2000.
The interface layout is neat, the line connection is clear, and it is easy to maintain and repair.
في ملخص, DS200UDSAG1ADE integrates control, display, and communication, and is the core supporting board of the power station excitation system.

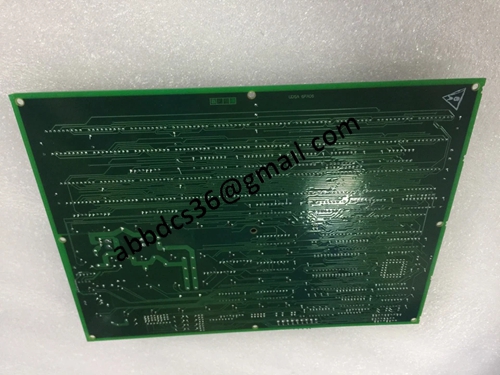

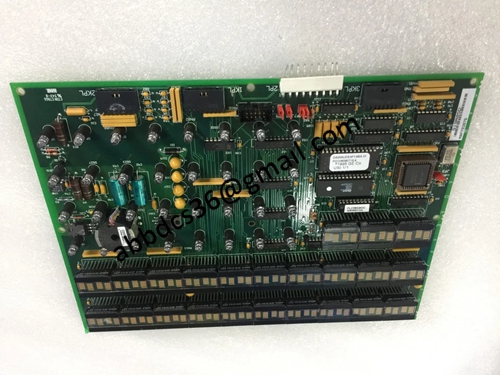

صور مفصلة للمنتج：

DS200UDSAG1ADE
