DSDP150 57160001-GF interface motherboard

دليل المنتج：

DSDP150 57160001-GF interface motherboard

I. Overview

DSDP150 (57160001-GF) is a pulse encoder input interface module in the ABB Advant OCS series. It is a dedicated signal acquisition and interface unit in industrial control systems, mainly used to receive external encoder or pulse generator signals, and achieve speed and position data conversion and processing.

2、 الوظائف الرئيسية
Receive A/B/Z phase pulse encoder signals
Realize rotation speed measurement and position calculation
Support high-precision pulse counting function
Digitize the input signal
Real time data interaction with the control system
Used for motion control and positioning systems
Support frequency measurement and signal analysis
Can be connected to industrial field encoder equipment
Provide a stable signal acquisition interface
Used for ABB Advant OCS system expansion
3、 Module Features
تصميم الصف الصناعي, suitable for complex on-site environments
Supports high-speed pulse input (typically up to 10kHz level)
High signal processing accuracy and strong anti-interference ability
Modular structure for easy system expansion
Stable operation, suitable for continuous industrial applications
Support real-time monitoring and data feedback
Strong compatibility with ABB control system
Easy maintenance and quick replacement
Supports multiple types of encoders
Suitable for high-precision motion control systems
4、 Conclusion

This module is mainly used for encoder signal acquisition and interface processing in industrial automation systems, and is an important interface unit for implementing speed and position control in ABB Advant OCS systems.

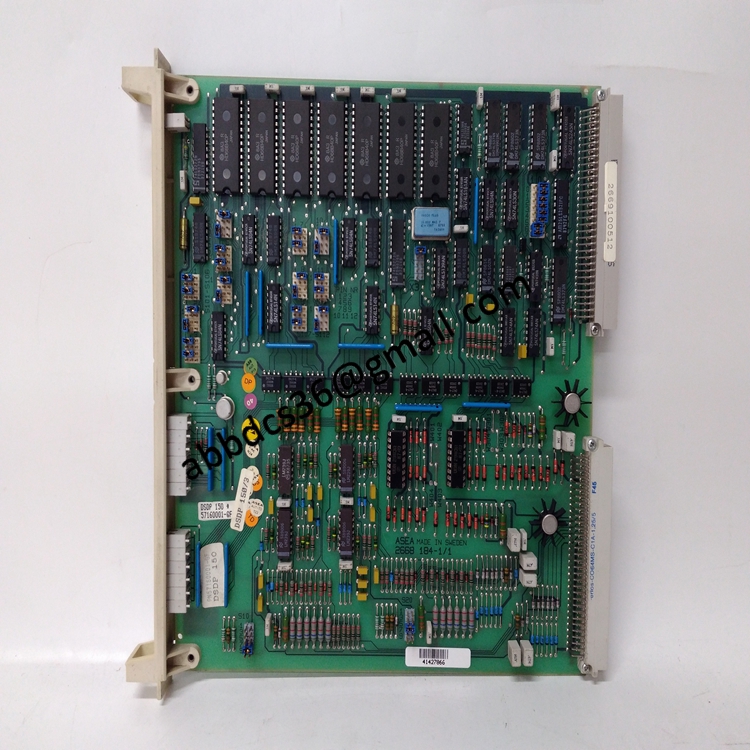

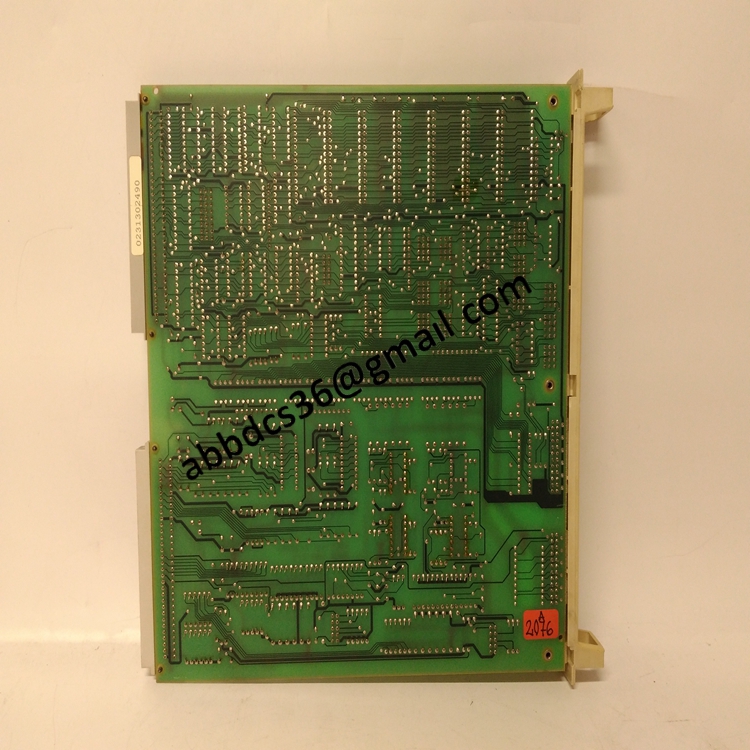

صور مفصلة للمنتج：

DSDP150 57160001-GF
