EI813F 3BDH000022R1 Programmable Logic Controller Module
دليل المنتج：
EI813F 3BDH000022R1 Programmable Logic Controller Module
I. Overview
EI813F (3BDH000022R1) is an Ethernet communication/fieldbus interface module in the ABB Freelance AC 800F system, mainly used to achieve data communication and system integration between control systems and industrial Ethernet equipment. It is a communication interface unit in distributed control systems.
2、 الوظائف الرئيسية
Provide industrial Ethernet communication interface (10BaseT)
Realize data exchange between the controller and PLC, DCS, HMI
Support TCP/IP basic communication structure
Data transmission and integration for process control systems
Support remote monitoring and system connection
Realize the interconnection between control network and on-site devices
Support standard industrial communication protocol extensions (such as Modbus TCP, etc.)
Participate in real-time data exchange of the system
Provide network communication status support
Used for AC 800F system expansion architecture
3、 Module Features
تصميم الصف الصناعي, suitable for continuous operation environment
هيكل مدمج, convenient for cabinet installation
High communication stability and strong anti-interference ability
Support modular system expansion
تصميم منخفض الطاقة, stable operation
Support integration with ABB Freelance system
Suitable for distributed control system architecture
Support remote maintenance and diagnosis
High reliability of data transmission
Widely used in process automation systems
4、 Conclusion
This module is mainly used for Ethernet communication and control system interface in ABB AC 800F system, and is an important functional module for realizing industrial network connection and data exchange.

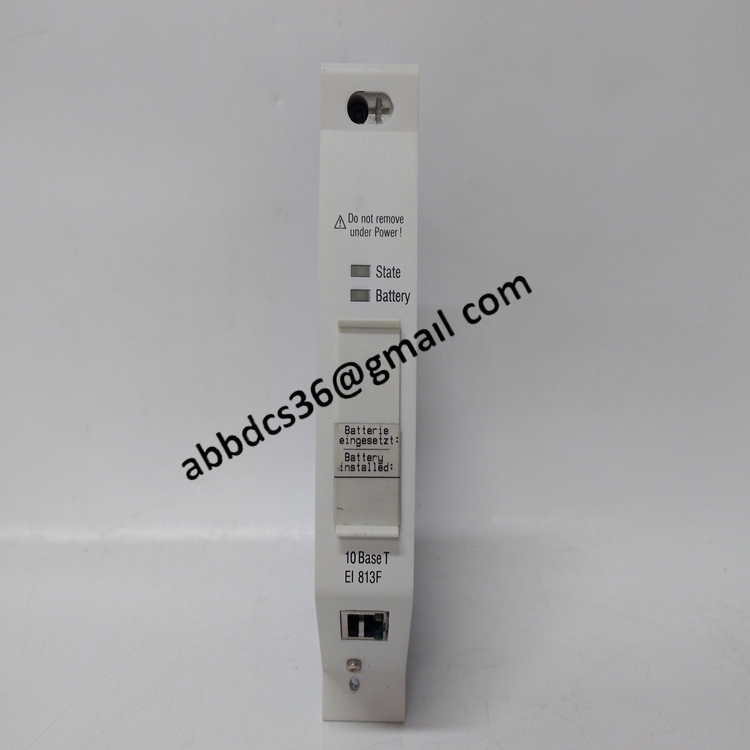

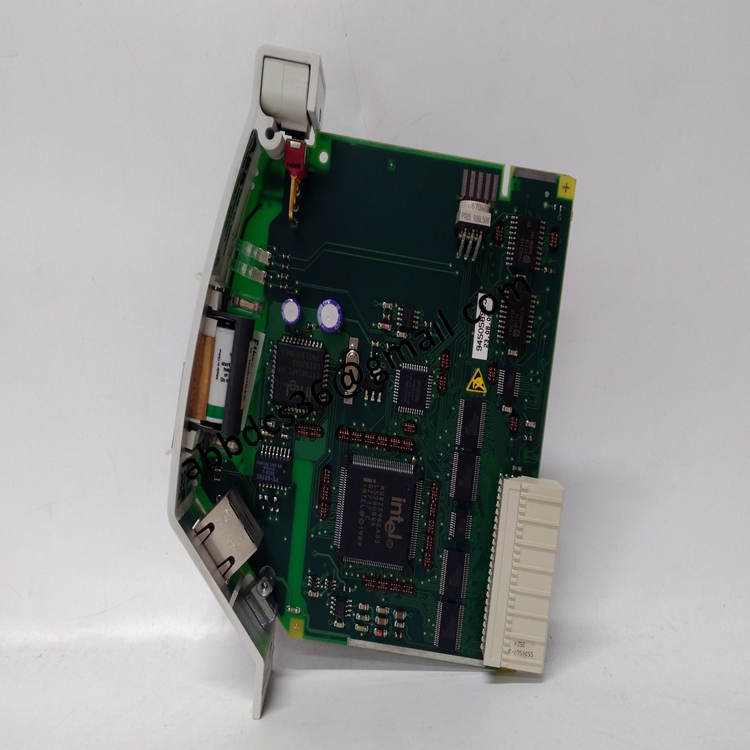

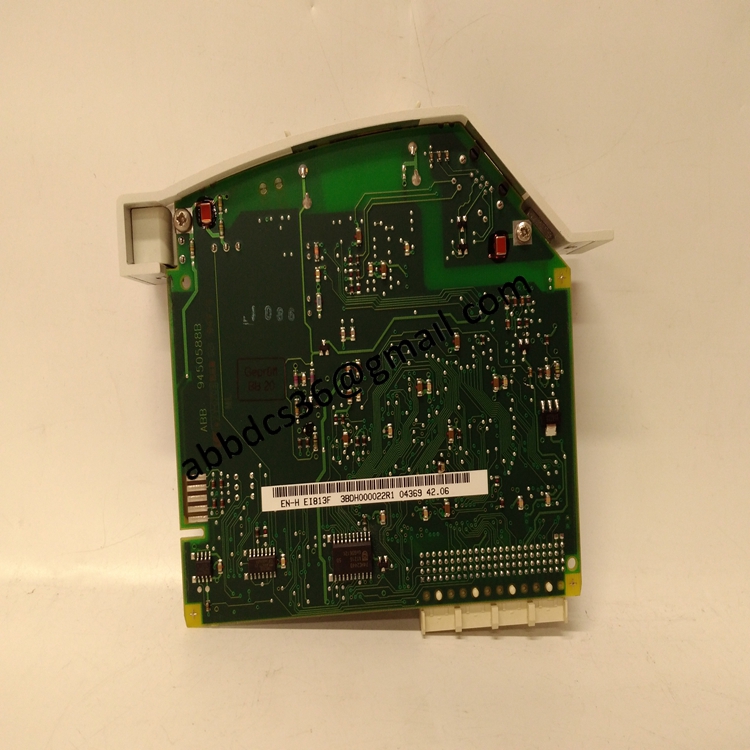

صور مفصلة للمنتج：
EI813F 3BDH000022R1
