FLN4234A controller module

دليل المنتج：

FLN4234A is a Motorola ACE3600 series CPU controller module (CPU3680), which is the core computing unit of SCADA/RTU system and used for remote data acquisition and control.
Brand: Motorola, model: FLN4234A, corresponding CPU: CPU3680.
Core positioning: ACE3600 RTU main controller, responsible for logical operations and data processing.
Processor: 32-bit high-performance processor with a main frequency of 200MHz and strong real-time computing capability.
Storage: 128MB RAM+16MB Flash, sufficient for program and data storage.
Communication: Supports Ethernet RS-232/485、CAN， Compatible with protocols such as Modbus and DNP3.
Redundancy: Supports dual redundancy of CPU/power supply, seamless switching in case of failure.
I/O Expansion: Multiple I/O modules can be mounted to adapt to large-scale on-site signal access.
Power supply: 24VDC industrial grade wide voltage, typical power consumption ≤ 10W.

Working temperature: -40 ℃~+70 ℃, suitable for harsh industrial environments.
Interface: Multiple serial ports+dual Ethernet, supporting multi link parallel communication.
Programmable: Supports industrial programming languages such as ladder diagrams and structured text.
Diagnosis: Built in hardware watchdog and status self-test for easy operation and maintenance.
Installation: Card/rack mounted, supports hot swapping.
Certification: Complies with industrial safety standards such as CE and UL.
Application: SCADA systems for power, oil and gas, معالجة المياه, municipal and other industries.
إنهاء
FLN4234A, with high reliability, strong scalability, and multi protocol compatibility as its core, is the key control center of the ACE3600 remote terminal system.

صور مفصلة للمنتج：

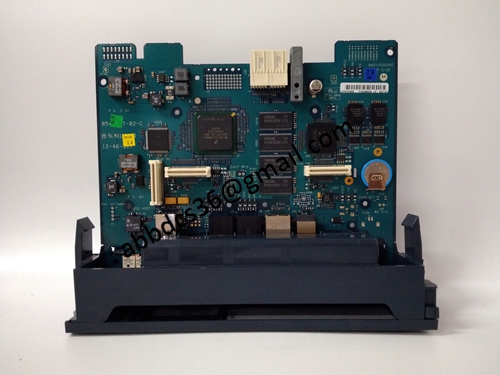

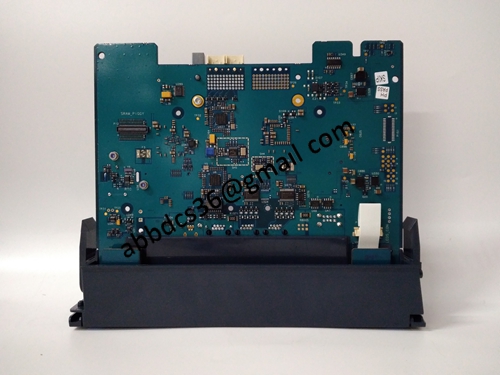

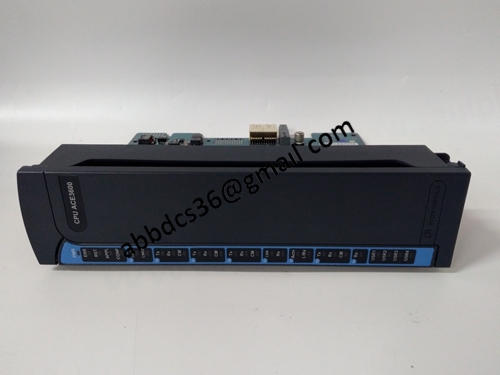

FLN4234A
