ICT 402-03 L1 scanning board

دليل المنتج：

ICT 402-03 L1 scanning board
افتتاح: ICT 402-03 L1 is a dedicated scanning and generating board for circuit board online testing equipment, which generates multiple testing scanning signals and completes the detection of circuit components.
1. ICT 402-03 L1 scanning signal output is stable, with small detection data errors
2. Multi channel synchronous scanning improves the efficiency of whole board testing
3. Built in signal filtering to avoid electromagnetic interference in the workshop
4. دائرة عزل Optocoupler, high and low voltage separated to ensure safety
5. Onboard fault self check, quickly locate channel abnormalities
6. Dual protection against overcurrent and overvoltage, automatic protection against short circuits in the circuit
7. هيكل إدخال البطاقة القياسية, عملية التفكيك والاستبدال سهلة
8. Multi layer shielded PCB, weak test signal without attenuation

9. تقنية التصحيح المعززة, earthquake resistant and not easy to solder off
10. ضوء مؤشر حالة اللوحة, visually visible for operational faults
11. Standard terminal interface, الأسلاك والصيانة مريحة
12. سرعة استجابة الإشارة السريعة, reducing the duration of a single test
13. الركيزة مقاومة درجات الحرارة العالية, not easily aged or deformed after long-term testing
14. Compatible with ICT whole machine testing program, no debugging required on the machine
15. Dustproof and moisture-proof surface coating, suitable for production line conditions
خاتمة: ICT 402-03 L1 scanning board has precise scanning, المتانة وسهولة الصيانة, and is the core signal board of circuit board online detection equipment.

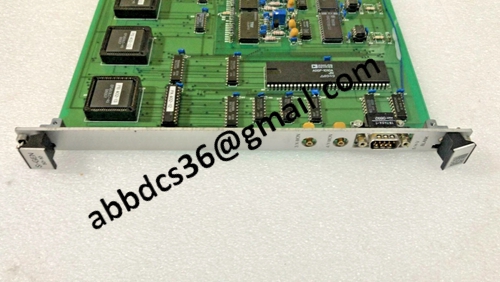

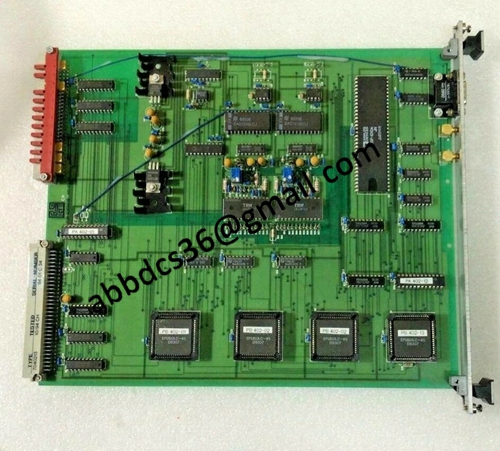

صور مفصلة للمنتج：

402-03 L1
