JEOL AP002115-01 Printed Circuit Board

دليل المنتج：

JEOL AP002115-01 Printed Circuit Board
1. Original factory supporting line layout, JEOL AP002115-01 compatible with precision instrument electrical control system
2. Fine line etching process ensures stable and low loss signal transmission
3. The substrate has excellent heat resistance and is suitable for long-term continuous operation of equipment
4. The solder mask protection layer is intact, effectively preventing copper foil oxidation and short circuit
5. Accurate pad specifications, high soldering adhesion of components
6. The wiring has been optimized through electromagnetic means to reduce signal crosstalk interference
7. Good mechanical flatness, not easily deformed or warped during installation
8. Standard positioning holes, التفكيك والاستبدال سهل ومريح

9. JEOL AP002115-01 has stable insulation performance and can withstand voltage fluctuations
10. Through hole process specification, reliable and durable interlayer conductivity
11. Clear silk screen markings for easy maintenance and identification of line nodes
12. Resistant to changes in temperature and humidity inside the instrument, مع القدرة على التكيف قوية
13. Impedance matching original factory design, no need to modify circuit parameters
14. Strong anti vibration ability, suitable for equipment operating conditions
15. Strict machining tolerances ensure compatibility of the entire machine control system

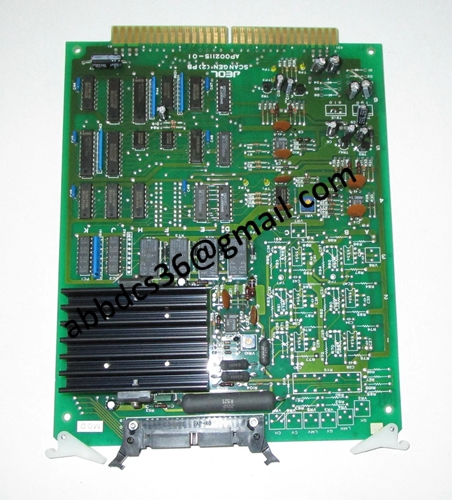

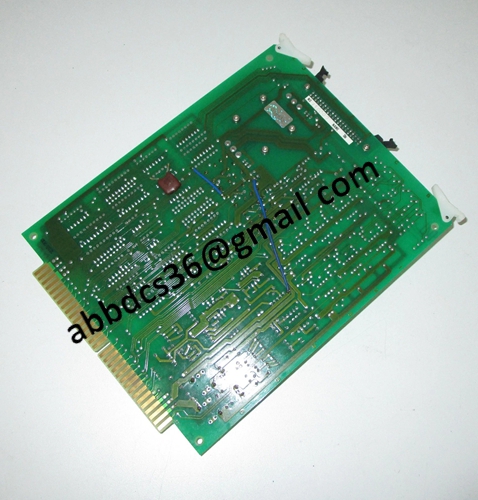

JEOL AP002115-01 printed circuit board is commonly used as a circuit carrier for JEOL electronic optical equipment.

صور مفصلة للمنتج：

AP002115-01
