JEOL AP002379-00 Printed Circuit Board

دليل المنتج：

JEOL AP002379-00 printed circuit board is compatible with JSM-6701F scanning electron microscope as a subsystem signal relay substrate.
1. Original PCB board, matched with JEOL JSM-6701F field emission scanning electron microscope
2. Carrying multiple control signals, sensor signal transmission and conversion
3. Precise wiring layout effectively reduces signal crosstalk
4. High quality insulation substrate to avoid potential electrical leakage and short circuit hazards
5. Layered cabling planning to weaken high-frequency signal noise
6. Slot type assembly structure, التفكيك والاستبدال سهل وسريع

7. Board surface protective coating, resistant to dust and moisture erosion
8. Reserve filtering points to stabilize signal transmission quality
9. Reliable via process reduces the probability of poor contact during long-term use
10. Connect peripheral functional components to achieve signal interoperability
11. Partition and isolation of high and low voltage lines to enhance operational safety
12. Built in simple electrostatic protection to protect external components
13. القدرة على التكيف البيئي القوي, stable operation under temperature and humidity fluctuations
14. Clear line markings for easy maintenance, قياس, and continuity
15. Accurate processing size, direct replacement without changing the rack
JEOL AP002379-00 printed circuit board is used for signal transmission and line transfer between local components of scanning electron microscopy.

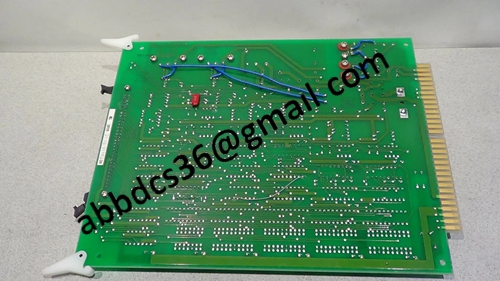

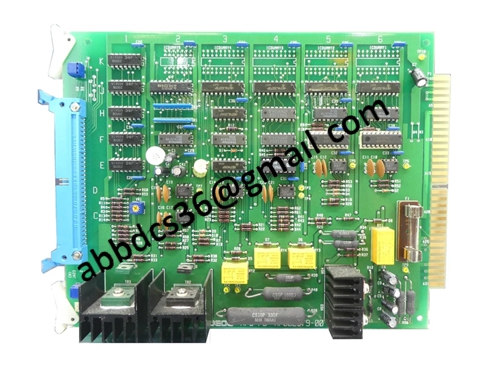

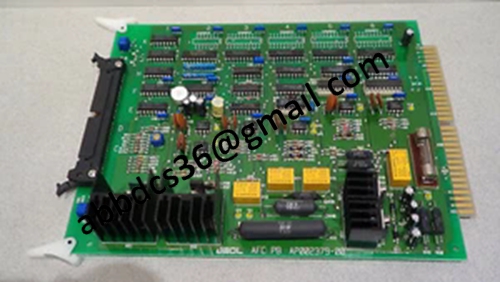

صور مفصلة للمنتج：

AP002379-00
