JEOL BP101507-03 Backboard

دليل المنتج：

JEOL BP101507-03 Backboard
1. JEOL BP101507-03 is suitable for internal assembly of JEOL precision instruments
2. Stable line connectivity ensures smooth signal exchange between modules
3. مكافحة التدخل الكهرومغناطيسي, the equipment is less prone to signal disorder during operation
4. Reserved standard installation holes for easy assembly and alignment
5. The substrate is sturdy and firm, and is not easily bent or deformed for long-term load-bearing
6. The surface has a protective coating, وهو مقاوم للغبار, مقاوم للرطوبة, and not easily oxidized
7. Low conductive path loss and stable power transmission efficiency
8. The wiring points are neatly crafted and not easily loose during insertion, resulting in poor contact

9. Compatible with various functional modules of the same series, with good universality
10. Low heat generation during full load power supply operation, sustainable and uninterrupted operation
11. Reasonable internal wiring layout to avoid mutual interference between lines
12. Resistant to conventional temperature differences and can be used normally in both high and low temperature environments
13. Good seismic performance, stable connection under equipment vibration state
14. Qualified insulation performance, effectively preventing leakage and short circuit faults
15. JEOL BP101507-03 undergoes full factory inspection and is directly put into use after installation
The JEOL BP101507-03 backplane serves as the core adapter carrier inside the instrument, with reliable and durable connections, making daily operation and maintenance worry free and stable.

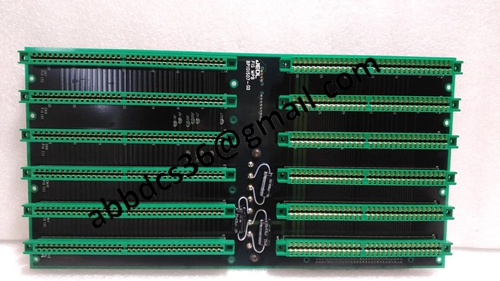

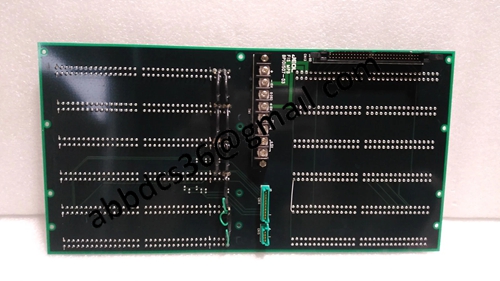

صور مفصلة للمنتج：

BP101507-03
