Jeol BP102022-00 circuit board
دليل المنتج：
JEOL BP102022-00 Circuit Board
1. Compatible with JEOL ion gun drive control system, JEOL BP102022-00 signal transmission is stable and low loss
2. Precision circuit etching process, strict control of circuit size tolerances
3. الركيزة مقاومة درجات الحرارة العالية, supporting long-term continuous operation of instruments
4. Complete solder mask protection layer to prevent copper foil oxidation and circuit short circuit
5. Standard pad specifications, component soldering is firm and stable
6. Electromagnetic optimized wiring design to reduce signal crosstalk interference
7. The board surface has good flatness and is not easily warped or deformed during installation
8. Unified positioning hole position, easy disassembly and replacement operation
9. JEOL BP102022-00 has reliable insulation performance and can withstand voltage fluctuations
10. Through hole process specification, interlayer conductivity is durable and long-lasting
11. The silk screen of the circuit is clear, making it easy for maintenance and identification of the circuit nodes
12. Adapt to changes in temperature and humidity inside the equipment, with strong environmental adaptability
13. Original factory impedance matching design, no need to adjust line parameters
14. Excellent anti vibration performance, matched with instrument operating conditions
15. Original factory version standard, perfectly compatible with the supporting components of the whole machine
The JEOL BP102022-00 circuit board serves as a carrier for ion gun driver circuits and is used in conjunction with JEOL ion beam related precision equipment.

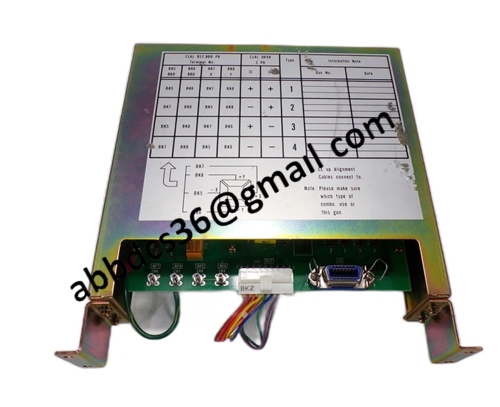

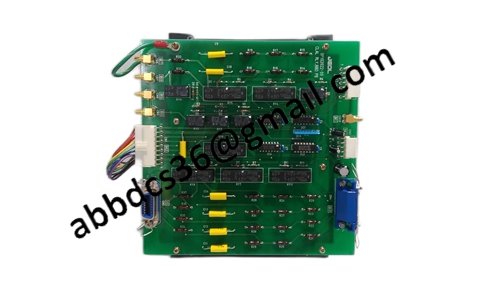

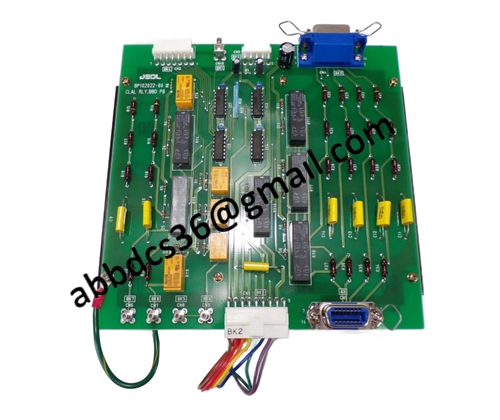

صور مفصلة للمنتج：
BP102022-00
