JEOL MP003648-00 DC Distribution Board
دليل المنتج：
JEOL MP003648-00 DC Distribution Board
1. Compatible with JEOL transmission electron microscope power supply system, JEOL MP003648-00 achieves stable distribution of multiple DC power sources
2. Built in multi-level overcurrent protection to prevent damage to the entire machine caused by load short circuit
3. JEOL MP003648-00 Line Impedance Optimization to Reduce Power Supply Voltage Drop and Ripple
4. Precision circuit etching process, capable of carrying continuous and stable current output
5. الركيزة مقاومة درجات الحرارة العالية, supporting long-term uninterrupted operation of electron microscopy
6. Improve solder mask protection to avoid copper foil oxidation, circuit leakage and short circuit
7. Standard solder pads and wiring points ensure secure and reliable connection of components
8. Electromagnetic optimization wiring to reduce interference from power supply lines and signal circuits
9. The flatness of the board surface is good, and it is not easy to deform or warp during installation
10. Standard positioning holes, سهل التفكيك, استبدال, and maintenance operation
11. JEOL MP003648-00 has excellent insulation performance and can withstand voltage fluctuations and impacts
12. Specification for metalized vias, stable conductivity of multi-layer power supply lines
13. Clear silk screen channel markings for easy maintenance and troubleshooting of power supply faults
14. Anti vibration structure design, suitable for continuous operation of equipment
15. Original factory electrical parameter matching, seamlessly compatible with the entire electronic control components of the machine
The JEOL MP003648-00 DC distribution board serves as a power distribution carrier and is used in conjunction with the JEOL JEM series transmission electron microscope.

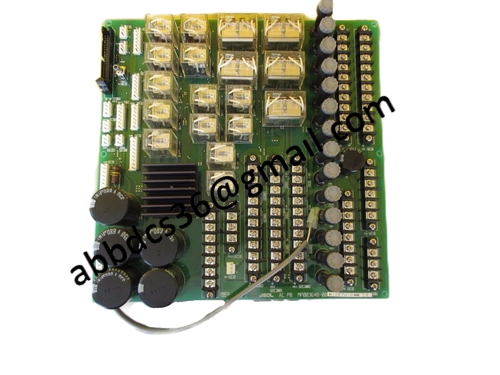

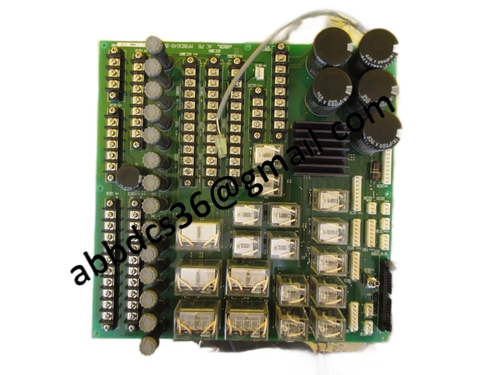

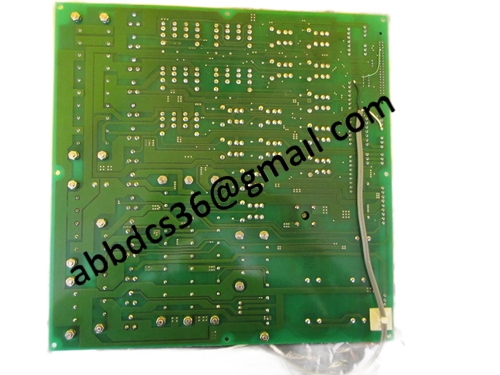

صور مفصلة للمنتج：
MP003648-00
