MATROX Y7469-03 acquisition card

دليل المنتج：

MATROX Y7469-03 (RADEV1GCLSF) Image Acquisition Card
Maichuang GigE Vision industrial vision acquisition card, compatible with semiconductor and high-precision visual inspection equipment
Standard PCIe bus interface for high-speed transmission of industrial camera image data streams
Equipped with FPGA chip, hardware analysis of GigE Vision industrial Ethernet protocol
Built in large capacity circular cache, significantly reducing the probability of image frame loss
Low transmission delay design, small frame interval jitter, suitable for high-speed production line detection
Independent TTL multi-channel triggering IO, capable of precise synchronous acquisition with PLC and sensors
Signal isolation circuit, resistant to cabinet electromagnetic interference, stable imaging without noise
Equipped with a built-in heat dissipation structure, the enclosed industrial control cabinet can operate at full load and low temperature for a long time

Gold plated circuit board, resistant to trace corrosive gases in clean workshops
Full board moisture-proof solder mask coating to prevent condensation and short circuit damage to components
Integrate multiple hardware safety protections for static electricity, التيار الزائد, and overvoltage
Compatible with Maichuang MIL visual software library, easy to develop and debug
Standard half length PCIe board type, compatible with mainstream industrial control chassis slots
Original standardized spare parts, the same model can be directly replaced on the machine
ملخص: The MATROX Y7469-03 acquisition card has stable transmission and high synchronization accuracy. It is the core image acquisition hardware for line/area GigE cameras and is commonly used in wafer defect and precision workpiece visual inspection production lines.

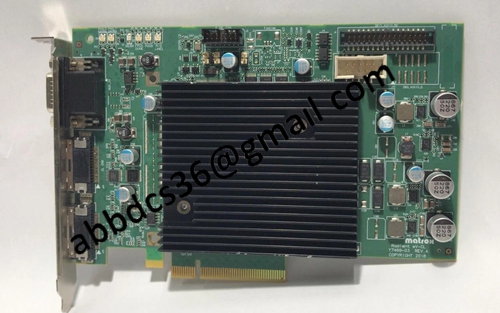

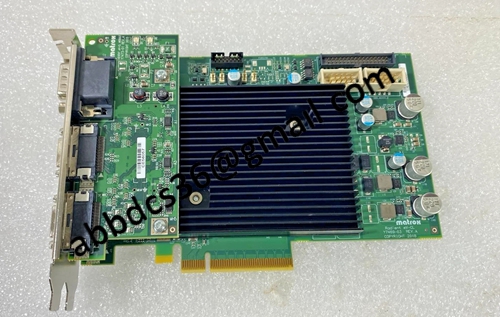

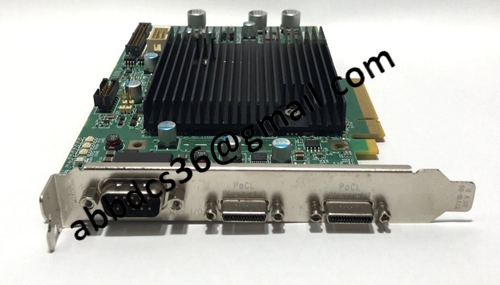

صور مفصلة للمنتج：

Y7469-03
