MEGA_ F 00000-2006-000-06 Linear Drive Module
دليل المنتج：
MEGA-F 00000-2006-000-06 Linear Drive Module
مقدمة: MEGA-F 00000-2006-000-06 is a Mega Fibs iLSD linear servo drive card designed for high-precision positioning control of semiconductor voice coils/linear motors.
Pure linear switchable output, no dead zone, pure current waveform, and extremely low positioning jitter
High bandwidth current loop, سرعة الاستجابة السريعة, no lag in small displacement control
Compatible with grating and magnetic grating encoders, supporting high subdivision and positioning accuracy up to nanometer level
Adequate peak output current, smoothly driving linear motor and voice coil motor
Built in multi-stage vibration suppression filter to suppress mechanical resonance and reduce platform vibration
Three stage gain segmented adjustment, independent optimization parameters for motion, tuning, and positioning stages
40kHz high-speed sampling, real-time calculation in a three ring closed-loop system, smooth motion trajectory
Equipped with optoelectronic isolation communication interface to resist semiconductor RF and plasma interference
Integrated hardware safety protection for overcurrent, overheating, ماس كهربائى, and limit
19 inch rack backplane plug-in card, modular insertion and removal, easy replacement of spare parts
Integrated high-power heat dissipation fins, controllable temperature rise under full load for a long time
Panel operation fault indicator light, quickly identify abnormal channel status
PCB spraying with three anti coatings, مقاوم للغبار والرطوبة, suitable for dust-free wafer workshops
Support real-time waveform display and visualization debugging of current/velocity/position curves in the upper software
Compatible with wafer inspection, lithography platforms, and precision optical positioning equipment
خاتمة: MEGA-F 00000-2006-000-06 is a low-noise and high-precision semiconductor precision linear motion core driving module.

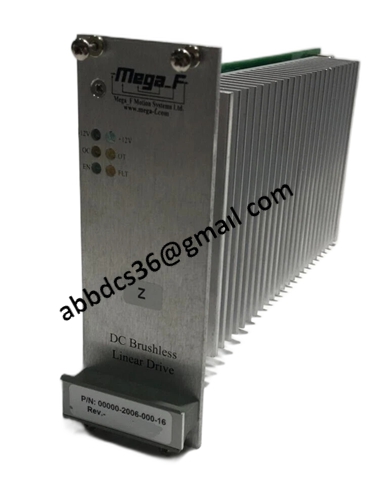

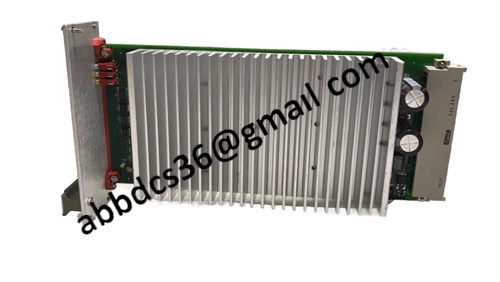

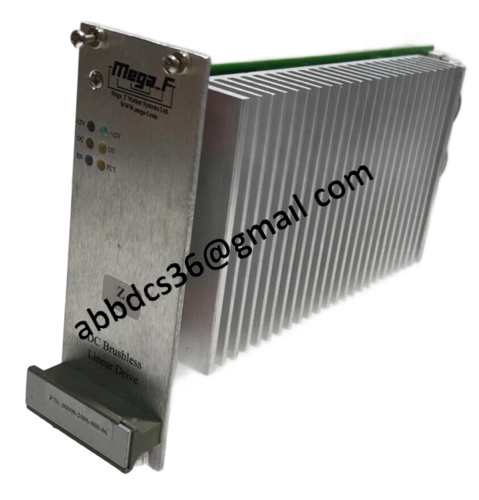

صور مفصلة للمنتج：
00000-2006-000 -06
