RENISHAW RPI20-P9-XX M-5225-0521-04 Printed Circuit Board

دليل المنتج：

RENISHAW RPI20-P9-XX M-5225-0521-04 Printed Circuit Board Product Features
RENISHAW RPI20-P9-XX M-5225-0521-04 is a printed circuit board for the Renishaw high-precision laser interference system, compatible with RLE laser encoders, with stable performance and outstanding accuracy, suitable for multi scene industrial precision measurement and control.
Compatible with RPI20 parallel interface and RLE laser interference encoder system.
Supports 4096 times analog signal interpolation with a resolution of up to 38.6 picometers.
Input bandwidth<6.5MHz, strong high-speed signal processing capability.
36 bit parallel format output, efficient transmission of positional data.
Single bus supports 7-axis synchronous control, with strong adaptability to multiple axes.
The position error SDE is less than ± 0.5nm, and the measurement accuracy is extremely high.
حجم صغير (110mm × 72mm), with small installation space occupation.

Comes with 8 DIP switches for flexible and convenient configuration.
It can output signal strength and fault identification, and monitor the status in real-time.
Support installation of VME motherboard and adapt to industrial standard architecture.
Differential 1Vpp Sin/Cos signal reception with strong anti-interference ability.
It can adapt to a maximum movement speed of 1m/s and has fast dynamic response.
Using highly stable substrates, it has strong adaptability to industrial environments.
Double sided precision wiring ensures good signal integrity and low transmission loss.
Renishaw original manufacturing process, compatible with M-5225-0521-04 model accessories.
في ملخص, RENISHAW RPI20-P9-XX M-5225-0521-04 printed circuit board is widely used in high-end precision measurement and control fields such as semiconductors and precision machine tools due to its advantages of ultra-high precision, high-speed transmission, and multi axis adaptation. It is a reliable core component for industrial high-precision measurement.

صور مفصلة للمنتج：

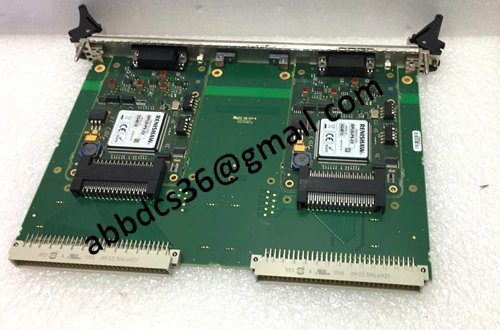

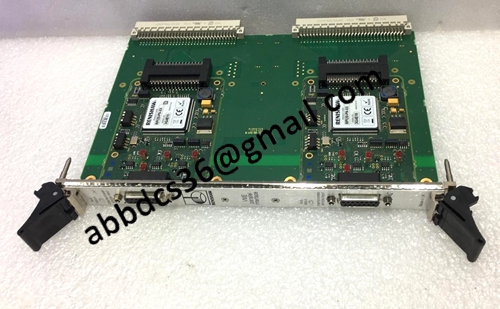

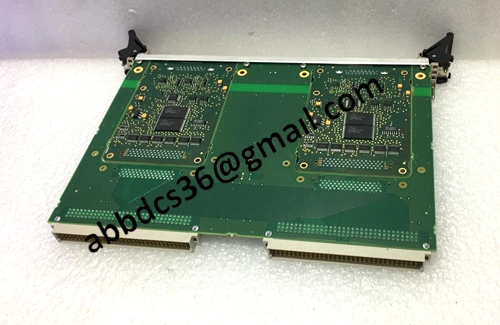

RPI20-P9-XX M-5225-0521-04
