RLX2-IFH24E Communication Module
دليل المنتج：
The RLX2-IFH24E communication module is ProSoft Technology’s RadioLinx RLX2 series industrial wireless communication device designed for reliable, long-distance wireless connectivity in harsh environments.
Basic functions and purposes
This module utilizes FHSS (Frequency Hopping Spread Spectrum) technology to achieve stable data transmission in the 2.4GHz unlicensed frequency band, making it ideal for use in environments with difficult wiring, high costs, or the need for mobile communication. Typical applications include SCADA systems, PLC/RTU remote data acquisition, pump station monitoring, oilfield monitoring, mobile AGVs, إلخ.
Core technical specifications
wireless communication
Frequency range: 2.400 – 2.4835 غيغاهيرتز
طريقة الاتصال: FHSS (Frequency Hopping Spread Spectrum)
Frequency hopping data rate: 1.1 Mbps or 345 kbps programmable
Receiver sensitivity: -97 dBm (high speed), -104 dBm (low speed)
Maximum transmission distance: up to about 24 km under open line of sight
Interface and Communication Protocol
واجهة إيثرنت: 1 × 10/100Base-T RJ45
Serial port interface: RS-232/RS-422/RS-485, used for transparent serial communication (such as Modbus RTU)
Security and Encryption
بنيت في 128 bit AES encryption ensures wireless data security
Work and reliability
Working power supply: 9 ل 24 VDC
Power consumption: تقريبًا 4.2 W (maximum)
درجة حرارة العمل: -40 درجه مئوية إلى +75 درجه مئوية
Shell and Installation: قذيفة معدنية, suitable for DIN rail installation

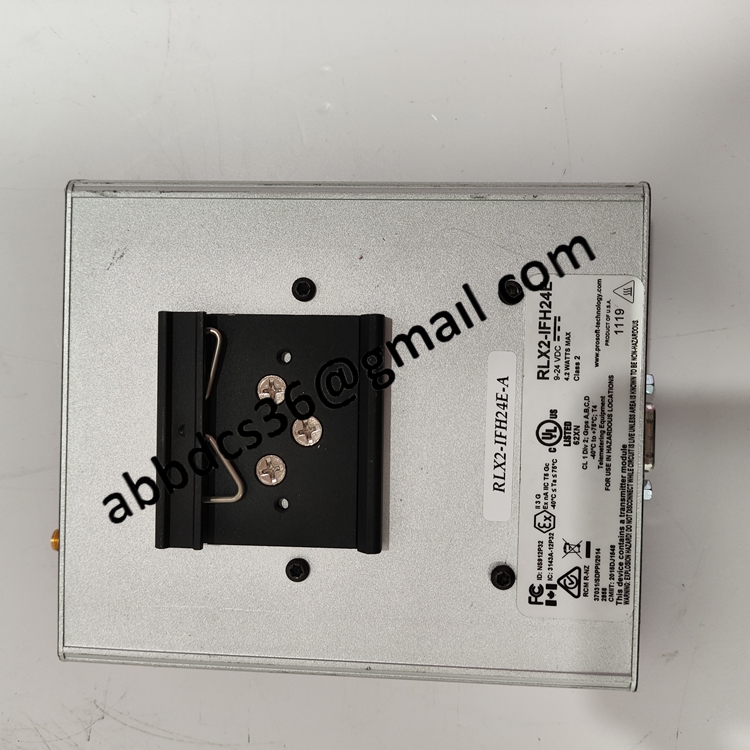

RLX2-IFH24E صور مفصلة للمنتج：
