SCXI-1326 High Voltage Terminal Block
دليل المنتج：
SCXI-1326 is a high-voltage terminal block for NI (National Instruments) SCXI system, used for high-voltage signal access and channel isolation, compatible with SCXI-1162/1162HV/1163/1163R modules.
Core parameters and characteristics
Positioning: SCXI system front-end high-voltage signal wiring terminal board, not an acquisition module.
Terminal configuration: 48 screw terminals, divided into 8 groups (bank), with 6 terminals per group (VCC, GND, 4-channel).
Isolation specification: 300Vrms common mode isolation between groups/group to ground, high voltage safety design.
Compatible modules: SCXI-1162, SCXI-1162HV, SCXI-1163, SCXI-1163R.
Terminal function: The usage of Vcc/GND/channel varies with different modules; 1162HV/1163R disable VCC.
طريقة التثبيت: Directly plug into the front connector of the SCXI module, with a fixed knob.
Electrical safety: IEC 61010-1, UL 3111-1 certification, installation category II, pollution level 2.
Environmental indicators: working temperature 0-50 ℃, storage temperature -20-70 ℃, 5-90% RH (no condensation).
Wiring specification: Suitable for 26-14AWG cables, screw torque 5-7 in lb.
Shielding structure: Metal shielding to reduce EMI interference.
Safety grounding: equipped with dedicated grounding terminals, high-voltage applications are forcibly grounded.
Size: Approximately 12.7 × 7.62 × 11.18cm, compatible with DIN rails.
سيناريوهات التطبيق: Industrial high-voltage digital I/O, relay control, high-voltage signal measurement and protection.
مصداقية: تصميم الصف الصناعي, suitable for high voltage conditions such as power plants and test benches.
Supporting cable: SH48-48 shielded cable is required to connect the module and terminal block.
SCXI-1326 provides reliable high-voltage signal access and protection for the SCXI system with high isolation, multi-channel, and safety design.
صور مفصلة للمنتج：

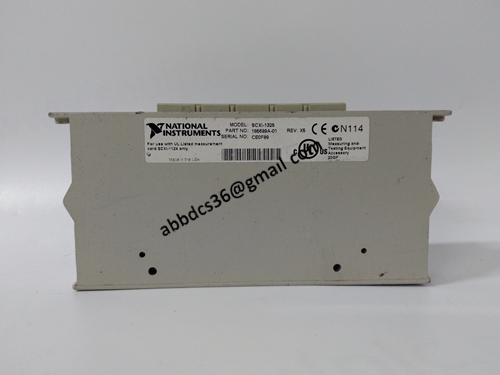

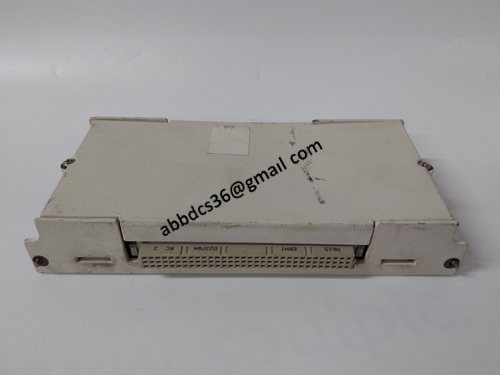

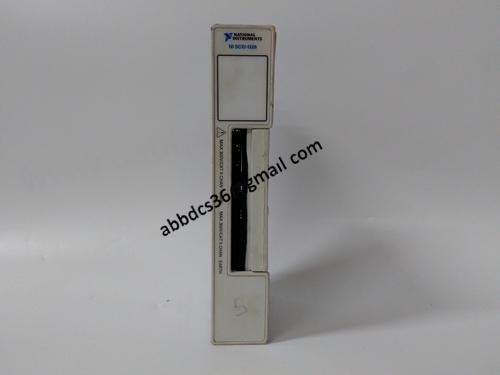

SCXI-1326
