TAC-311DG current sensor

دليل المنتج：

TAC-311DG is a DEIF TAC-300 series single function AC current sensor designed specifically for industrial current monitoring, which accurately converts AC current signals into standard DC signal outputs.
Single phase AC current measurement, standard range 0-1A AC, 0-5A AC, maximum measurable 1.0~7.25A AC.
Output 4-20mA DC standard signal, compatible with control systems such as PLC, DCS, display instruments, إلخ.
Accuracy level 0.5, nonlinearity<0.2%, precise and stable measurement.
Response time<10ms, real-time tracking of current changes.
Wide range power supply, supporting multiple specifications such as 24-230V AC/DC, 48-110V DC, إلخ.
Load capacity ≤ 600 Ω, compatible with various backend devices.
The frequency range is 45-65Hz, suitable for industrial frequency power grids.

Strong overload capacity: can work continuously at 2 times the rated current, and can withstand 10 seconds at 10 times the rated current.
Compliant with 300V CAT III safety standards, reliable industrial environment protection.
Protection level IP40, dustproof and splash proof, suitable for industrial sites.
Working temperature -20 ℃~60 ℃, storage temperature -40 ℃~85 ℃.
Size 55 × 75 × 110mm, supports 35mm DIN rail installation, easy wiring.
Weighing about 300g, compact in size, saving cabinet space.
The shell material is UL94 V1 level self extinguishing flame retardant, safe and durable.
The product has been discontinued and there is no official replacement model available. Please contact DEIF for a replacement solution.
إنهاء
TAC-311DG is a key component for current monitoring and transmission in industrial power systems, with high precision, wide adaptability, and high reliability as its core.

صور مفصلة للمنتج：

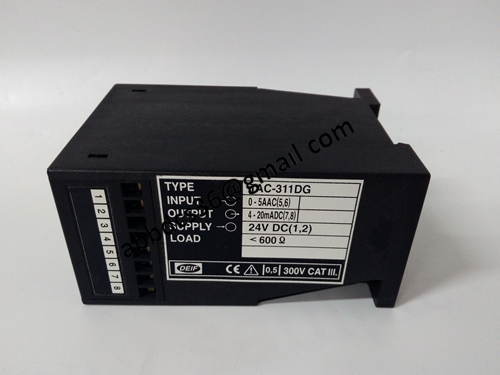

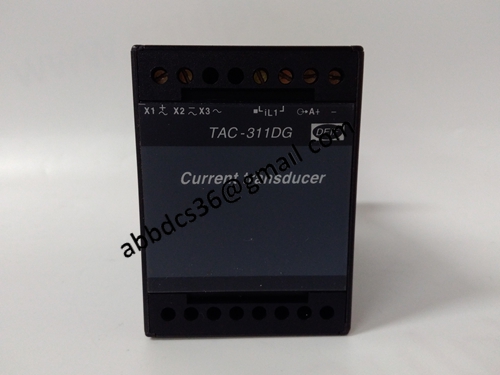

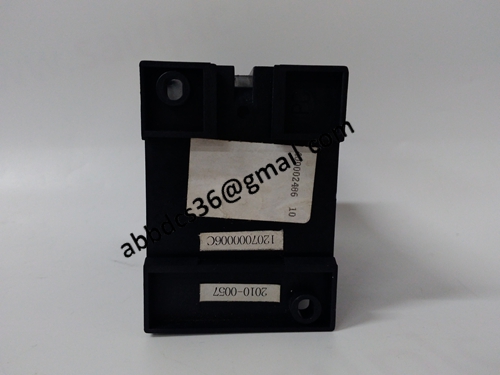

TAC-311DG
