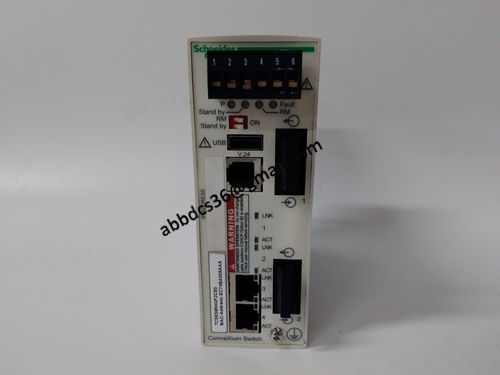

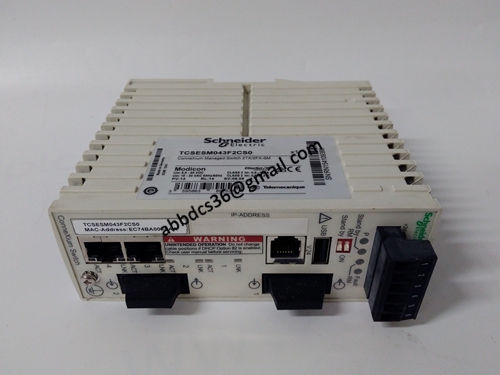

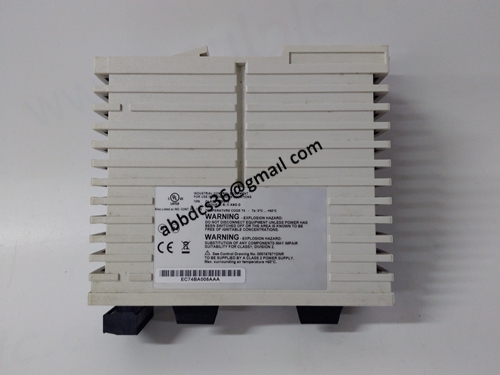

TCSESM043F2CS0 Managed Switch

دليل المنتج：

TCSESM043F2CS0 is a Schneider ConneXium series industrial grade managed switch designed specifically for automation scenarios.
Brand and model: Schneider Electric, ConneXium series, model TCSESM043F2CS0.
Port configuration: 2 10/100BASE-TX electrical ports (RJ45), 2 100BASE-FX single-mode optical ports (SC).
Transmission distance: maximum 100m for copper cable CAT5e and maximum 32.5km for single-mode fiber.
Power supply: 9.6-60VDC/18-30VAC, redundant power supply, 6-pin pluggable terminals.
Power consumption: 7.7W.
Installation: 35mm DIN rail, size 47 × 131 × 111mm, weight 0.4kg.
Ring redundancy: HiPER Ring, RSTP, MRP, self-healing<50ms.
Management: Web/SSH/Telnet/SNMP/LLDP/SNTP, supports port mirroring QoS、VLAN。
Multicast: IGMP Snooping, optimized for industrial data transmission.

Security: Port reinforcement, address conflict detection SNMP Traps。
Diagnosis: LED status, self-test, alarm relay output.
Environment: IP20, working at 0-60 ℃, 10-95% RH without condensation.
Certification: CE, UL, EtherNet/IP, IEC 61850-3.
Application: Machine control, conveyor line, packaging, Modicon PLC matching.
Positioning: Compact industrial managed switch that balances long-distance fiber optic and local electrical port access.
TCSESM043F2CS0 is designed with high reliability, strong redundancy, and easy management as its core, to meet the long-distance and local mixed access requirements of industrial automation networks.

صور مفصلة للمنتج：

TCSESM043F2CS0
