هاتف MPC-T0048A-11 مجموعة ثنائي الفينيل متعدد الكلور
دليل المنتج：
The TEL MPC-T0048A-11 PCB component is a dedicated main control circuit assembly for Tokyo Electronic Semiconductor Cleaning Equipment, with the following core features:
1. Multi layer high-precision laminated board, high-density wiring adapted to multi-channel process signals
2. Precise impedance matching process, with extremely low transmission loss of high-frequency sensing signals
3. Copper grounding structure is laid in different zones to effectively isolate electromagnetic interference in the workshop
4. Array thermal conductive metal via, long-term full load heat dissipation balance and stability
5. Thick gold plated solder pads, repeatedly disassembled and welded to prevent oxidation and virtual soldering
6. Layered isolation of strong and weak electrical wiring to eliminate voltage clutter interference signals
7. Equal length processing of differential lines to reduce signal crosstalk and transmission delay
8. High Tg industrial substrate, resistant to high and low temperature cycling conditions of equipment
9. Reserve standard shielding installation positions, and ensure that the EMC protection performance of the entire machine meets the standard
10. Laser micro hole electroplating process ensures long-lasting and reliable interlayer circuit conductivity
11. Dust free special solder mask coating, moisture and dust resistant, مناسبة لورش العمل النظيفة
12. Full component reinforcement patch technology to resist equipment vibration and impact during operation
13. Native matching TEL cleaning machine control system, communication protocol compatible
14. Built in anti-static protection circuit to protect the onboard precision control chip
15. Standardized positioning holes, replacing original components without the need to modify equipment
TEL MPC-T0048A-11 PCB component stably carries semiconductor equipment process control signals, ensuring continuous production and operation of the production line

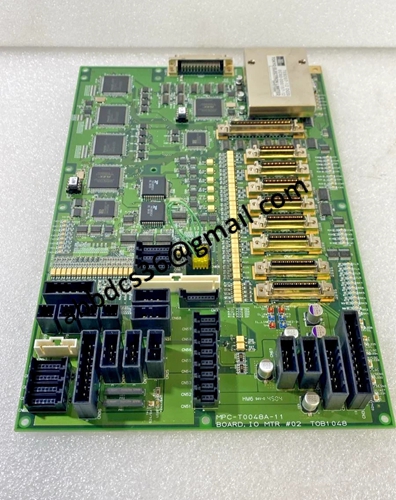

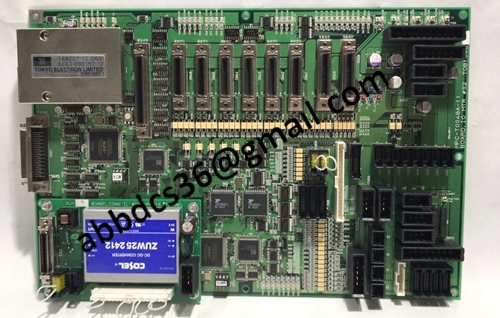

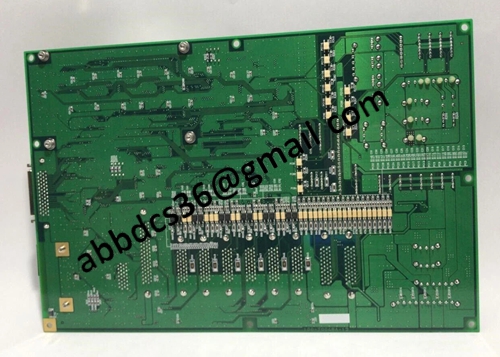

صور مفصلة للمنتج：
MPC-T0048A-11
