TEL T-3044SS Printed Circuit Board
دليل المنتج：
TEL T-3044SS Printed Circuit Board Product Features
TEL T-3044SS is a specialized functional PCB board for Tokyo Electronic Semiconductor Equipment, responsible for machine signal transmission and logic control, suitable for use in dust-free production lines. خصائصه هي كما يلي:
High density multi-layer circuit, synchronous transmission of multiple process control signals
Independent isolation wiring effectively shields cabinet electromagnetic interference
Thickened conductive copper foil, lower and more stable temperature rise for high current transmission
Precision metalized through holes, multi-layer circuit connections are not easily broken
Reserve multiple sets of signal terminals to interface with various sensor components in the cavity
High temperature resistant solder mask coating, capable of withstanding alternating high and low temperature environments in cabinets
Strengthen the layout of the circuit to prevent virtual soldering caused by long-term vibration of the equipment
Equipped with a built-in filtering circuit to ensure precise and unbiased process timing
Multiple reserved testing points are available for convenient and efficient troubleshooting and measurement
Original production in dust-free workshop, no particle pollution in wafer process
Card insertion installation structure, disassembly and replacement without changing the circuit
Integrated multi-channel communication wiring, linked with various boards of the whole machine
Built in short-circuit protection circuit, quickly cuts off the circuit in case of abnormalities
Partition arrangement of components, damaged components can be replaced and repaired separately
Unified original factory model size, direct installation replacement of spare parts of the same model
TEL T-3044SS printed circuit board has stable signal transmission and convenient maintenance, making it a core circuit spare part for TEL semiconductor process equipment.
صور مفصلة للمنتج：

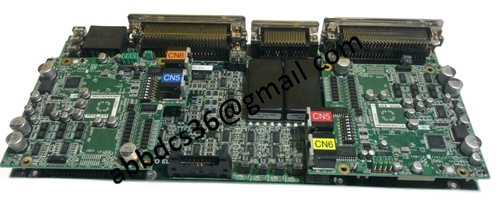

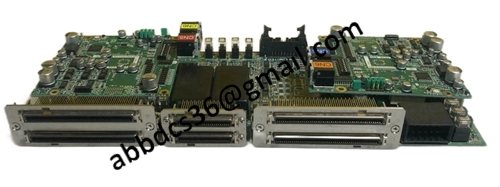

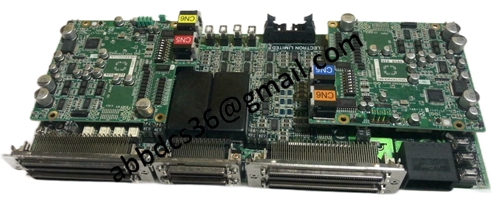

T-3044SS
