TEWS TIP114-10 Relay Controller

دليل المنتج：

TEWS TIP114-10 relay control board, realizing signal output and peripheral on-off control.
15 characteristics
1. TIP114-10 is equipped with multiple independent relay points, which can independently control the start and stop of the load.
2. Optoelectronic isolation circuit, isolating the main control from external circuit interference.
3. Standard industrial card structure, can be plugged into the chassis backplane for communication and power supply.
4. Equipped with overcurrent protection, external short circuits are less likely to damage board components.
5. The circuit is equipped with built-in filtering to weaken surrounding electrical interference and avoid misoperation.
6. Adapt to a wide temperature environment and operate stably in a temperature difference environment of the cabinet.
7. Onboard status indicator light provides a visual view of the on/off status of each contact point.
8. Bus docking with industrial control motherboard, receiving instructions to drive relay actions.

9. PCB three proof treatment, مقاوم للغبار والرطوبة, suitable for industrial workshop environment.
10. TIP114-10 of the same model can be directly replaced without changing the wiring.
11. Compact size, effectively saving installation space for chassis slots.
13. Specification for contact load parameters, suitable for solenoid valves and small contactors.
14. Long term continuous operation with low temperature rise results in longer service life of components.
15. Commonly used for daily maintenance and replacement of industrial control equipment and automation equipment.
إنهاء
إجمالي, the card has stable performance and strong universality, making it a key component in industrial automation systems; The original supply is tight and the ordering cycle is long, making it an important spare part for the maintenance and reserve of old equipment.

صور مفصلة للمنتج：

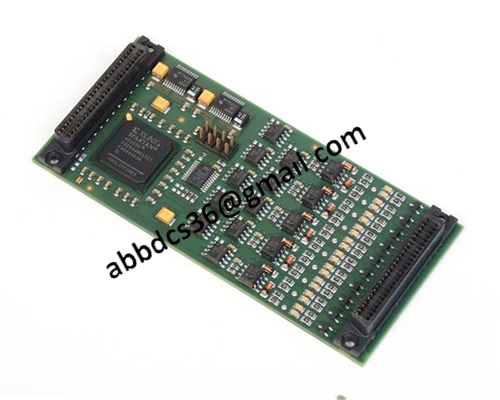

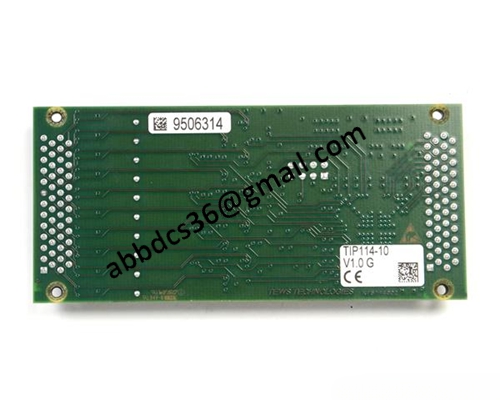

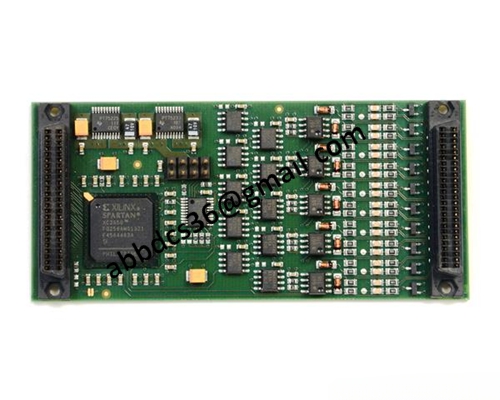

TIP114-10
