VMIVME-7700-11000 processor board

دليل المنتج：

VMIVME-7700-11000 processor board
Produced by GE Fanuc/VMIC, 6U VME bus single board computer (اس بي سي)
Adopting Intel ultra-low voltage Celeron 400/650MHz processor, 815E chipset, 100MHz front-end bus
Single slot, passive cooling, Eurocard structure, suitable for industrial embedded systems
Supports VMEbus Rev. C. and VME64 modes, with PCI-VME transparent bridging
Onboard 32KB non-volatile SRAM, optional IDE boot flash (up to 1GB)
Integrate 1 PMC expansion slot, supporting functional expansion
Provide dual 16 bit and dual 32-bit programmable timers
The power supply is standard VME 5V/12V, with dimensions of 233 × 160 × 20mm and a weight of approximately 1.2kg
Working temperature 0-70 ℃, industrial grade anti-interference design

Support real-time operating systems such as Linux, Windows, VxWorks, إلخ
Integrate Ethernet, serial port, USB and other I/O interfaces to adapt to system interconnection
Can be used as a system controller or peripheral CPU, supporting multi CPU systems
مناسبة للأتمتة الصناعية, التحكم في العملية, instrumentation, and embedded real-time control
Widely used in harsh scenarios such as power, علم المعادن, military, aerospace, إلخ
Original factory spare parts quality, suitable for upgrading and maintenance replacement of old systems
VMIVME-7700-11000 has become the core processor board for embedded real-time control due to its compatibility with VME bus, passive heat dissipation, and industrial grade reliability.

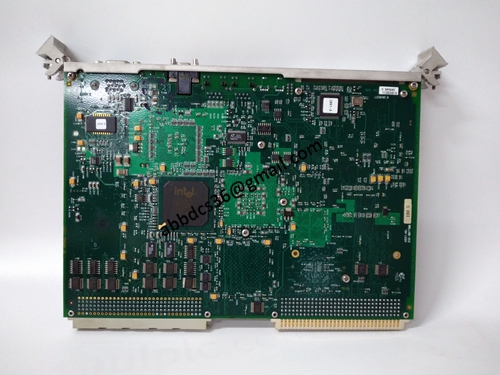

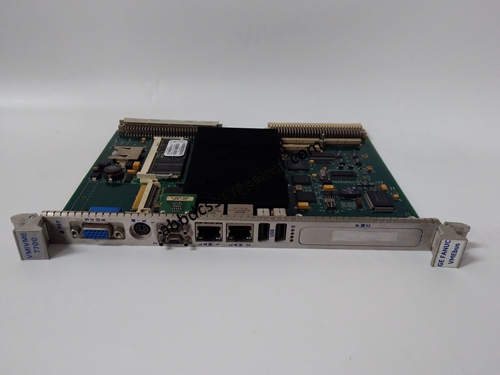

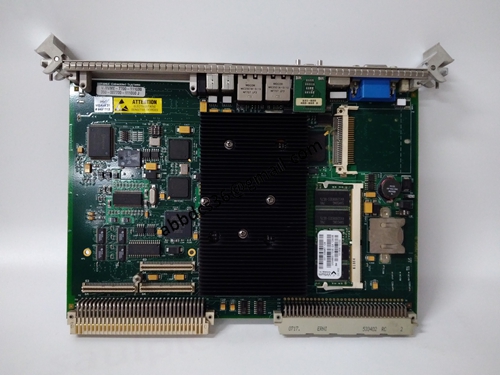

صور مفصلة للمنتج：

VMIVME-7700-111000
