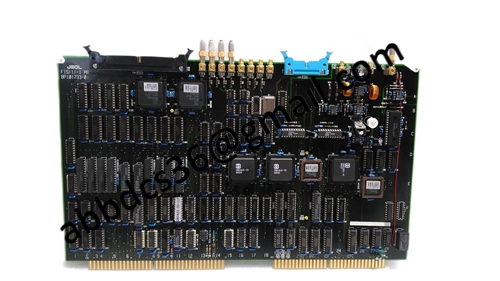

JEOL BP101733-01 Printed Circuit Board
Product Manual：
JEOL BP101733-01 Printed Circuit Board
1. Compatible with JEOL series electron microscope equipment signal line carrying capacity
2. Precise wiring design reduces signal transmission loss
3. Built in filtering circuit to resist electromagnetic interference from devices
4. Industrial grade substrate, adaptable to temperature changes inside the chassis
5. Reliable metalized through holes for long-term stable contact
6. Reasonable impedance control to ensure weak signal transmission
7. Excellent insulation performance, preventing high-voltage leakage hazards
8. The components are firmly welded and have seismic characteristics
9. Multiple signal channels for bidirectional signal interaction
10. Original hardware timing, compatible with the main control system
11. Solder mask protective layer, resistant to dust and trace moisture
12. Integrated voltage stabilization circuit, buffering voltage fluctuation impact
13. Standard plug-in interface, easy to disassemble and replace
14. Standardization of board dimensions to fit equipment card slots
15. Original factory aging test, interchangeable spare parts of the same model
The JEOL BP101733-01 printed circuit board is an internal signal carrier for electron microscopes, supporting stable signal transmission of various functional units.
