086466060S rectifier group

Product Manual：

086466060S rectifier group, realizing AC to DC conversion, providing power conversion for transmission equipment.
1. 086466060S rectifier group has high power conversion efficiency and stable DC output
2. Modular assembly, easy disassembly and assembly, convenient replacement and maintenance of spare parts
3. Integrated rectifier power devices to complete AC/DC power conversion
4. Status indicator light, providing intuitive feedback on operation and fault status
5. Wide temperature range, suitable for high temperature environment inside industrial cabinets
6. Built in heat dissipation structure, good heat dissipation effect under high load
7. The overall structure is compact, saving installation space for the control cabinet

8. Equipped with multiple protections against overcurrent, overvoltage, and overheating
9. 086466060S rectifier group has strong surge resistance and can withstand power grid fluctuations
10. Compatible with the same series of transmission machines, with high assembly compatibility
11. Stable output current, reducing ripple interference
12. The wiring terminals are reliable and can withstand on-site vibration and impact
13. Faults can be quickly located for easy maintenance and replacement
14. Industrial grade components that support long-term full load operation
15. 086466060S rectifier group is commonly used in DC drive and variable frequency industrial control scenarios
Overall, the 086466060S rectifier group has excellent power performance and is the core component of power conversion in the transmission system

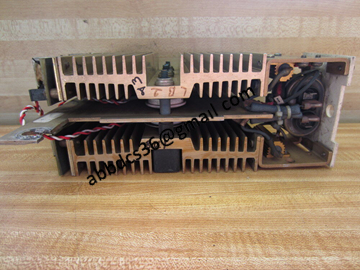

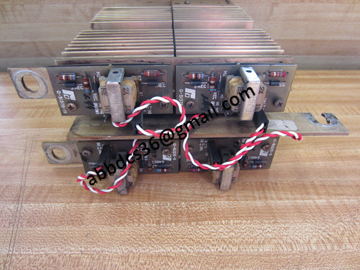

Product detailed pictures：

086466060S

product video
