1391-DES45 Printed Circuit Board
Product Manual：

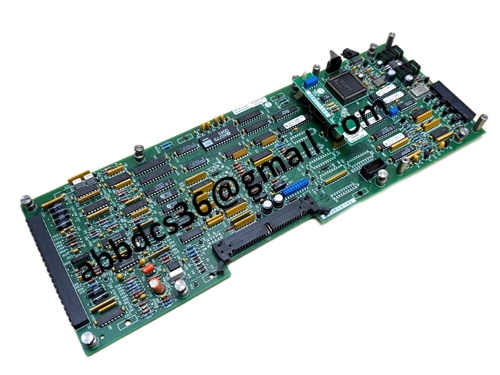

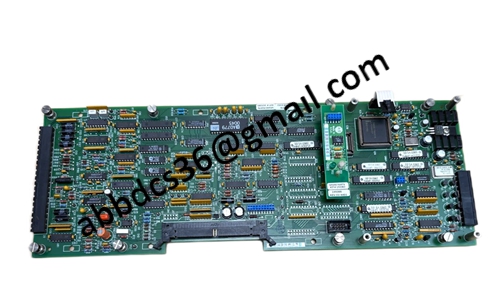

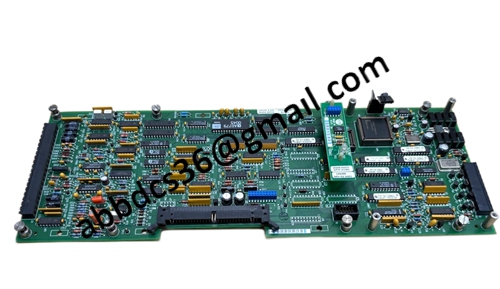

The 1391-DES45 printed circuit board is the core control board of the Allen Bradley 1391 series servo driver. As the signal processing and motion control center of the servo system, it has stable performance and strong universality, and is a commonly used spare part for industrial servo maintenance.
1. Compatible with the full range of 1391 servo drives, with high compatibility and matching
2. Responsible for motion control algorithm computation and instruction signal processing
3. Integrated position/speed/torque closed-loop control circuit, high control accuracy
4. Equipped with optoelectronic isolation interface, effectively resisting industrial electromagnetic interference
5. Built in multiple fault detection circuits, real-time monitoring of servo operation status
6. Equipped with comprehensive protection functions such as overcurrent, overvoltage, overheating, overload, etc
7. Onboard status indicator light, visually visible for operation and fault status
8. Industrial grade FR ‑ 4 plate, excellent heat resistance and aging resistance
9. Surface three proof coating treatment, dustproof and moisture-proof, suitable for harsh working conditions
10. Optimization of circuit layout, minimal signal crosstalk, and strong transmission stability
11. Standard interface definition, easy disassembly and replacement, reducing downtime
12. Support high-speed pulse and bus communication, adapt to multi scene control requirements
13. Fast dynamic response, precise matching of high-frequency start stop and complex loads
14. Compact structure, suitable for internal installation space of servo drives
15. Widely used in equipment such as machine tools, robots, automated production lines, etc
The 1391-DES45 printed circuit board, with its precise control performance and reliable operation, effectively ensures the long-term stable operation of servo drivers and is the preferred board for maintenance and replacement of 1391 series equipment.
