1746-OW16 controller module
Product Manual：
1746-OW16 controller module, Rockwell SLC500 series relay output module, outputs switch values to drive field devices.
1. 16 relay contact output channels
2. Isolation relay output, both AC and DC loads can be driven
3. Each group of 8 channels is isolated to reduce mutual interference between channels
4. Maximum contact current 2A, supporting AC loads of 120-240V
5. Panel LED indicator light for intuitive viewing of channel on/off status
6. Direct slot installation, compatible with SLC500 rack backplane
7. Support program configuration, quickly configure output logic
8. Capable of surge absorption and suppressing relay on/off impact
9. No external power supply required, the backplane obtains the working power supply of the module
10. Long mechanical lifespan of contacts, suitable for frequent switching scenarios
11. Channel independent status feedback for easy troubleshooting
12. Can be connected to contactors, indicator lights, solenoid valve loads
13. IP20 protection, suitable for installation inside control cabinets
14. Compatible with SLC series programming software download and debugging
15. Industrial wide temperature range, suitable for factory automation working conditions
1746-OW16 is applied to assembly lines, water treatment, and small production lines, outputting switch signals to control on-site execution devices

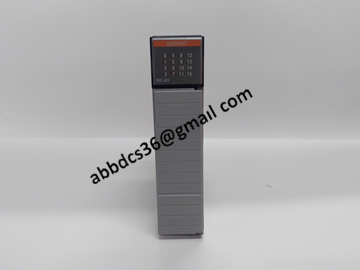

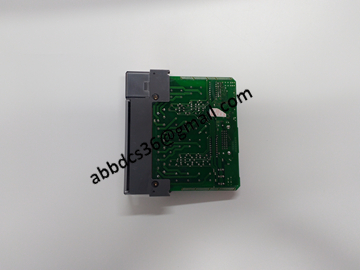

Product detailed pictures：
1746-OW16
