1794-TB3 processor module
Product Manual：
Product features of 1794-TB3 terminal base module:
1. Compatible with the FLEX I/O series as an IO module wiring base
2. Screw clamped terminals ensure secure and reliable wiring
3. Supports DIN rail installation, making control cabinet assembly convenient
4. Three wire terminal layout, compatible with three wire sensor wiring
5. Support hot plugging of IO modules without the need to modify on-site wiring
6. Multiple sets of common terminals and power terminals, with clear wiring
7. Equipped with basic insulation isolation to reduce signal interference
8. Compatible with multiple digital and analog FLEX IO modules
9. Adequate power carrying capacity to meet on-site circuit power supply needs
10. Compact size, saving installation space inside the cabinet
11. Wide temperature operation, suitable for high and low temperature conditions of cabinets
12. Good anti vibration performance, suitable for industrial site environment
13. Clear terminal identification for easy maintenance and troubleshooting of the circuit
14. Modular splicing, expandable distributed IO points
15. Industrial grade casing, dustproof and durable, with a long service life
The above are the core features of the 1794-TB3 terminal base module, which is used for on-site signal wiring in distributed FLEX I/O systems.
Product detailed pictures：

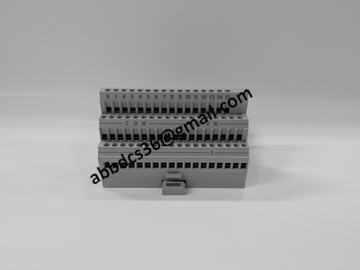

1794-TB3
