336A4940CTP1/SYS000156 Gas Turbine Control System
Product Manual：
336A4940CTP1/SYS000156 is a complete control system for GE gas turbines, which coordinates the collection and operation regulation of various parameters of the unit.
15 characteristics
1. 336A4940CTP1 adopts a modular slot structure, which can install various types of boards such as CPU, IO, and power supply.
2. Built in integrated backplane to achieve power supply and signal transmission interconnection among various components.
3. The metal shell structure is solid and can withstand the vibration impact caused by the operation of the unit.
4. Equipped with a built-in heat dissipation channel, the heat dissipation performance is stable under dense installation.
5. The backplane circuit is isolated to prevent single component failures from affecting the entire machine.
6. Factory fixed program, SYS000156 number adapted to corresponding unit configuration parameters.
7. Adapt to industrial DC power supply and comply with power plant control cabinet distribution standards.
8. The circuit is designed with built-in filtering to weaken on-site electrical noise interference signals.
9. The board supports separate disassembly and assembly, and maintenance and replacement do not require dismantling the entire rack.
10. Circuit board protection treatment, dustproof and moisture-proof, suitable for the dusty environment of power plants.
11. Connect temperature, speed, and pressure measuring points to collect real-time data on unit operating conditions.
12. Over limit automatic triggering interlock ensures the safe operation of gas turbines.
13. Equipment with the same number can be directly replaced, saving time and effort in unit maintenance.
14. Expandable external module, flexibly increasing the number of control points for measurement.
15. 336A4940CTP1 is commonly used for maintenance and renovation of gas power plant units.
ending
The original factory order cycle is long, and 336A4940CTP1/SYS000156 is a key spare part for the gas turbine control system.

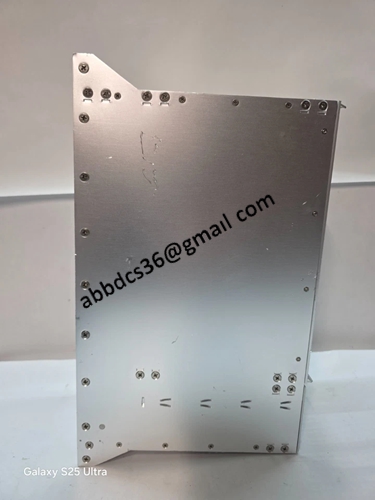

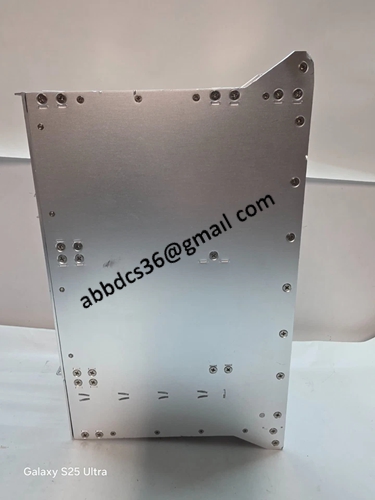

Product detailed pictures：
