369-HI-R-M-F-E-H-E Relay Motor

Product Manual：

369-HI-R-M-F-E-H-E Motor Management Relay
GE Multilin 369 series high-end three-phase motor protection/management relay
Control power supply: 50-300VDC/40-265VAC, 50/60Hz
12 RTD temperature inputs (Pt100/Ni120/Cu10) for precise monitoring of winding/bearing temperature
Equipped with a measurement package, supporting full parameter measurement of voltage, power, energy consumption, frequency, etc
Equipped with fiber optic communication port, enhanced diagnostic and graphic LCD display panel
6 optical isolated digital inputs, 8 programmable relay outputs

Supports 40+protections including overcurrent, locked rotor, undervoltage, phase loss, grounding, differential, overheating, etc
Industrial grade wide temperature range: -40 ℃~+70 ℃, strong anti-interference ability
Communication: Dual Ethernet (Modbus TCP/DNP3)+RS485 (Modbus RTU)
Event record: 512 time stamped events for easy fault tracing
Adapt to harsh chemical environments, protect against EMC compliance
Compatible with EnerVista 369 software, easy to configure and debug
Suitable for key motor scenarios such as power, petrochemical, metallurgical, and chemical industries
369-HI-R-M-F-E-H-E is the core management unit for the safe operation of industrial key motors, with comprehensive protection, precise measurement, strong communication, and high reliability.

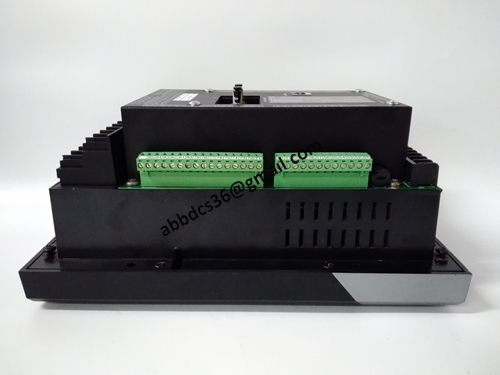

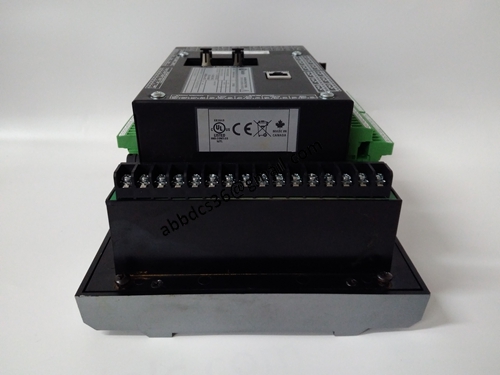

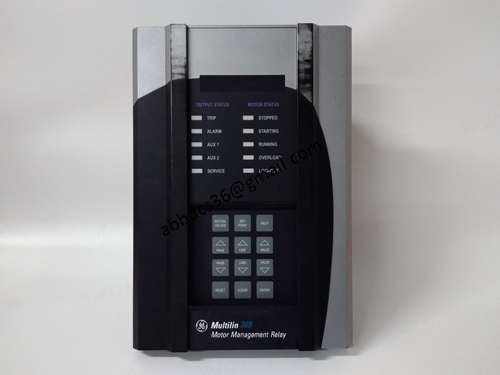

Product detailed pictures：

369-HI-R-M-F-E-H-E
