3BHB003689 Controller Module

Product Manual：

3BHB003689 is an ABB DCS system controller module suitable for industrial process control and signal processing scenarios.

1. Equipped with a digital signal processing chip, the processing speed is fast
2. Onboard hardware isolation circuit with strong channel anti-interference capability
3. Support module hot plugging, can be replaced and maintained without stopping the machine
4. Built in multiple hardware protections for overcurrent, overvoltage, and overheating
5. Compatible with Symphony Plus and 800xA control system rack installation
6. Supports multiple industrial communication protocols such as Modbus and Profibus
7. The relay output contacts have a long lifespan and are suitable for high-frequency switching conditions

8. 24V DC backplane power supply, low power consumption, stable operation
9. Equipped with self diagnostic function, able to report module fault status
10. Short signal response time, meeting real-time control requirements
11. Modular architecture, which can be flexibly combined with I/O modules of the same series
12. Wide working temperature range, suitable for harsh working conditions on site
13. Spring terminal wiring, easy and reliable disassembly and installation of wiring
14. Passed CE safety certification and met industrial equipment standards
15. Protection level IP20, suitable for installation environment inside the control cabinet

3BHB003689 is widely used in DCS control systems for power, metallurgy, and chemical industries, providing stable and reliable support for on-site equipment control output.

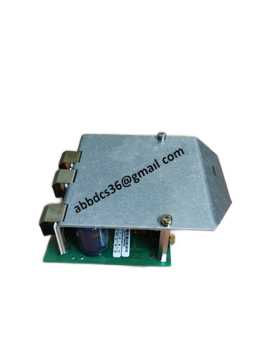

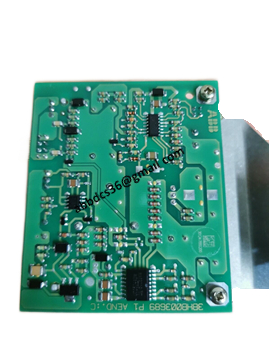

Product detailed pictures：

3BHB003689
