3BHE046836R0101 GFD563A101 Ethernet Controller Module

Product Manual：

3BHE046836R0101/GFD563A101 Ethernet Controller Module
Product positioning

Ethernet control module in industrial automation system

Used for data communication and network control between industrial equipment

Commonly used in power plants, process control systems, and large-scale industrial automation systems

core functionality

Provide high-speed Ethernet communication interface to achieve device interconnection

Receive data requests from controllers or upper level systems and process them

Forwarding control signals to execution modules or other network nodes

Support network status monitoring and fault diagnosis functions

Technical Features

Industrial grade design, high temperature resistance, vibration resistance, and electromagnetic interference resistance

Support standard Ethernet protocol to achieve fast communication between devices

Modular structure for easy installation, maintenance, and system expansion

Built in status indicator light for easy network operation monitoring

working principle

The controller module receives data from the upper system or controller through Ethernet

Internal processing unit parses and processes network data

Output control signals to the execution module or other control nodes based on the processing results

Real time data exchange, remote monitoring, and system coordination control can be achieved

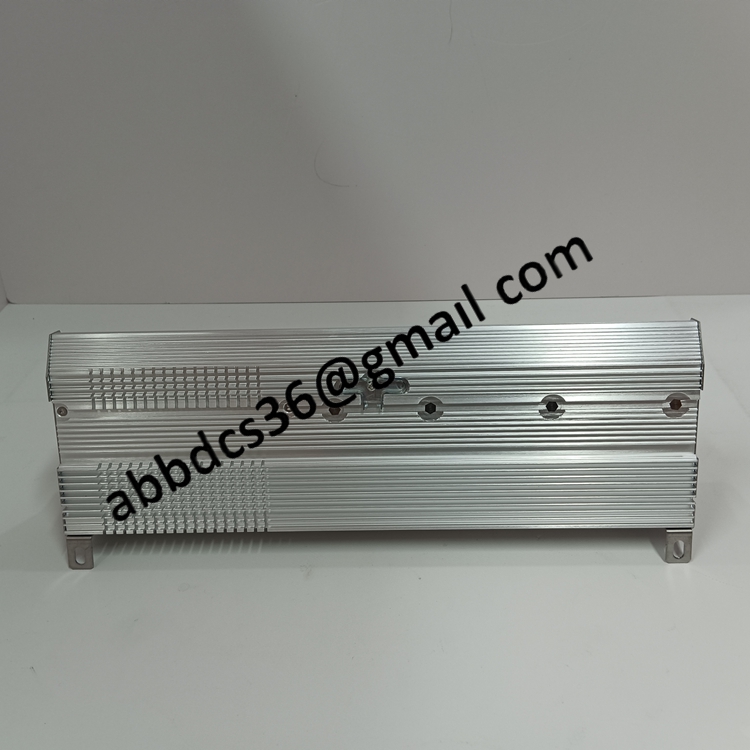

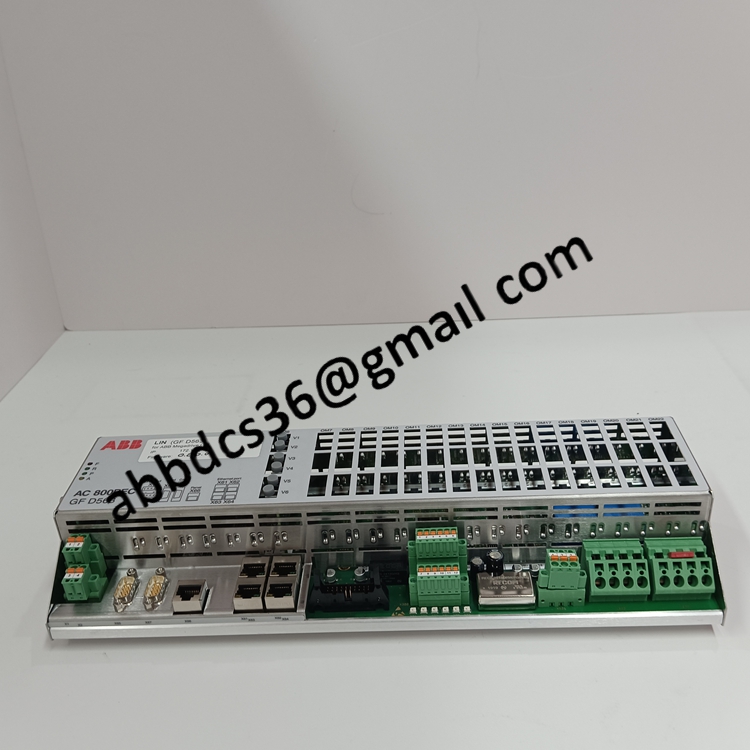

3BHE046836R0101 GFD563A101 Product detailed pictures：
