5SHY4045L0004 3BHB021400R0002 High Voltage Inverter Module

Product Manual：

5SHY4045L0004 3BHB021400R0002, IGCT power unit, high-voltage inverter power device.
1. 5SHY4045L0004 crimped IGCT, 4500V high voltage level, high current capacity
2. 3BHB021400R0002 is equipped with a gate drive board and fiber optic trigger control for on/off
3. Complete assembly of modules, convenient disassembly and maintenance
4. Suitable for water cooling and heat dissipation, suitable for high-power working conditions
5. Low on state loss and minimal overall heat generation
6. Can withstand large surge currents and resist load fluctuations
7. Optoelectronic isolation, resistant to on-site electromagnetic interference

8. Equipped with short circuit and overcurrent detection, it quickly blocks pulses in case of faults
9. 5SHY4045L0004 can expand the overall power of the machine in parallel with multiple units
10. Fast switch off speed and quick protection response
11. Wide temperature operation, stable performance inside the high-temperature cabinet
12. Uniform compressive force and resistance to equipment vibration
13. The fault status signal can be uploaded to the main control system
14. High compatibility with ACS6000 high-voltage frequency converter machine
15. 5SHY4045L0004 is commonly used in metallurgical transmission, wind power conversion, and high-voltage frequency conversion equipment
Overall, the 5SHY4045L0004 3BHB021400R0002 power unit has high voltage resistance and strong overload capacity, making it the core power component of high-voltage converters.

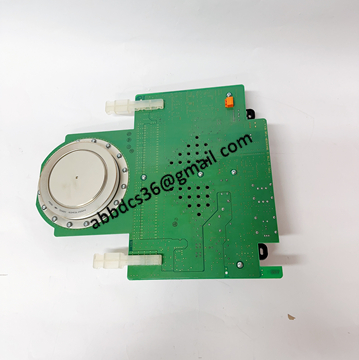

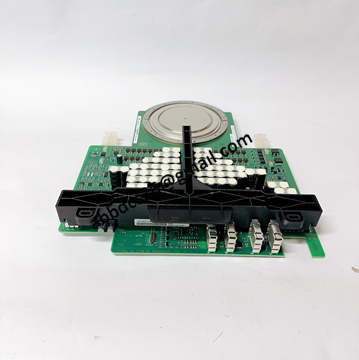

Product detailed pictures：

5SHY4045L0004 3BHB021400R0002
